Flatbed Raod Wrecker Truck with Crane Tow Crane

FOB Price: USD 20000.30 /Unit
Min.Order: 1 Unit
Supply Ability: 60 Unit
Delivery time： 16 days

Product Description

Details&colon;

1.Kindsofroadwrecker&colon;Towcombinedwithcranewrecker,towseparatew ithcranewrecker
2.Tractiontonnage&colon;2t,3t,5t,8t,10t,15t,25t,30t,50t,60t,foroption.
3.Towandcraneusehigh- strengthsteel,carbondioxideautomaticprotectionwelding,smallweldjoint,noteasytodeformation,highstrength,andpassedultrasonicweldjointinspection.

Parameter &colon;

Item		Unit	Parameter
Overalldimension		mm	6515×2150×2370
Actualliftweight		kg	3000-5000
Massinworkingorder			Appro×6495
Armextensionstrokeoflift		mm	Approx1500
Maxloadingweight		kg	Approx5000
Wheelbase		3800mm	Enginetype	CY4102BZLQ
F/Rtrackbase		1750/1586mm	Exhaust/hp	3856/120ml/ps
F/Roverhang		1110/1260mm	fuelconsumption/100km	13L
Approach/Departureangle		18/14°	Minturningradius	12m
Maxspeed		90km/h	Maxgradeability	25°
Tire		7.50-16	Mingroundclearance	176mm
Armorplatespringquantity		7/8+5	Gearbox	5speeds
BrakeSystem		Exhaustbrake	Clutch	¢242mm
Brakespace		8m	Aircondition	optional
Front/Rearaxles		1.5/3.5T	frame	188mm
Tractionsystem		4×2	Electricsystem	12v
Numberofaxles		2	Allowablepassengers	2
SpecializedDevice	LiftingOrgan	Maxliftingcapacity(kg)			1500
		Maxliftingheight(mm)			3630
		Lift-hoisttelescopelength(mm)			1600
		Winchratingpullingcapacity(kg)			4000
		Lengthofsteel(m)			21
	HoistingOragan	Maxunder-hoistingusefullength(mm)			1750
		Ratingunder-hoistingcapacity(kg)			1540
		Fullyextendedmaxunder-hoistingcapacity(kg)			1200
		Ratingunder-pullingcapacity(kg)			4400

Company Information
1. 20 independents workshops.
2. Established from 2004.
3. 300 senior engineers and technicians. about 2000 to 3000 workers.
4. 380kinds of trucks and semi-trailers.
5. Turnover 2million trucks and semi-trailers annually.
6. 1000 sets of equipments, 25 assemble lines.

We also provide products as follows&colon;

1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water Truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck Mounted Crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck,sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

FAQ

Payment&colon;
30% deposit by T/T after order /confirm/iation, 70% balance should be paid before delivery byT/T or L/C.Other type of payment can be discussed.

Packaging &Shipping&colon;

1. Naked or waxed before on board.
2. Delivery time&colon; 30 days after receiving deposit.
3. By RORO or Bulk ship.

Delivery time&colon;
25 working days?after payment is received.

Our warranty&colon;
1. One year quality guarantee for three key parts&colon; Axles, engine, transmission.
2. Other spare parts could be supplied by OEM at cost prices.
3.Our engineers are always ready to deal with technical problem.

If you are interested in our trucks, pls feel free to contact with me,I will give you our competitive qutation.

Contact person&colon;Beryl
Tel&colon;+86-13713604915

Product Images

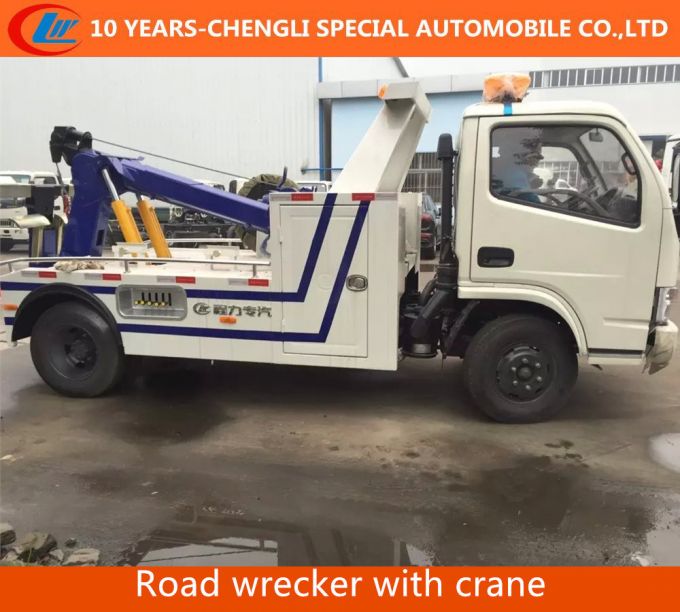

Flatbed Raod Wrecker Truck with Crane Tow Crane Images 1

Factory Show

Chengli Special Automobile Co., Ltd.

　　Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.

　　We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.

Factory Show

　　Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.

Customer Visit

Our Services

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging & Shipping

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container

Chengli Special Automobile Co., Ltd. Packaging & Shipping
