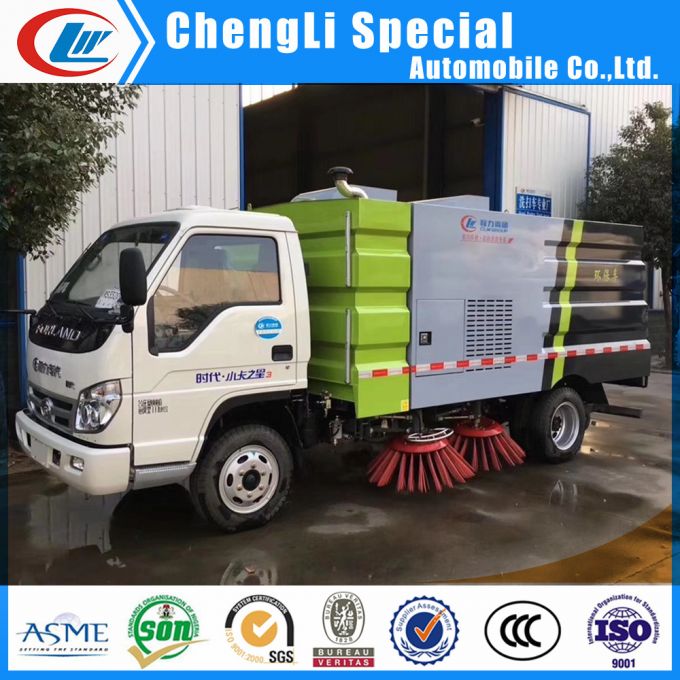

Foton 4X2 Vacuum Road Sweeper Trucks
- USD 19000.25 /Unit
- 1 Unit
- 50 Unit
- 15 days
1. Four sweeper brush and sucker for sweeping combination with excellent sweeping ability
2. each side of the broom or brush can work at the same time, or work independently on each side
3. cleaning device mechanism is simple and reliable, which is hard to damage;
4. all stainless steel dust bins, water tanks,
5. hydraulic system core components are all imported;
6. cleaning system powered by auxiliary engine, which do not interfere with vehicle power.
Technical Specs for Road Sweeper Truck
| Condition | New condition/Left hand drive/4x2 | ||||
| Chassis | Curb weight(kg) | 10520 | |||
| Wheelbase(mm) | 4500 | ||||
| Dimensions(mm) | 7880*2470*3150 | ||||
| Overhang (front/rear) (mm) | 1430/1950 | ||||
| Wheel track (front/rear) (mm) | 1880/1800 | ||||
| Approach/Departure angle(°) | 20/10 | ||||
| Axle Load(kg) | 6000/10000 | ||||
| Max. driving speed(km/h) | 90 | ||||
| Brand | Foton | ||||
| Model | CLW1160 | ||||
| Tire | Number | 6pcs with one spare tire | |||
| Specifications | 9.00-20 | ||||
| Clutch | Reinforced diaphragm clutch | ||||
| Gear box | Manual type, 6 Forwards & 1 Reverse | ||||
| Cab | It can accommodate three people | ||||
| Engine | Model | B170 33 | |||
| Displacement(ml) | 5900 | ||||
| Power(kw)/Horsepower(HP) | 125/170 | ||||
| Emission standard | Euro 3 | ||||
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||||
| Upper | |||||
| Tank | Garbage tank | Tank material | Stainless steel 304 | ||
| Tank volume(cbm) | 8.0cbm | ||||
| Water tank | Tank material | Stainless steel 304 | |||
| Tank volume(cbm) | 4.0cbm | ||||
| Auxiliary engine | Model | Dongfeng Cummins(Famous brand) | |||
| Power(kw) | 100kw | ||||
| Brush | Quantity(pc) | 4 pcs | |||
| Working area(m) | 3.0-3.5m | ||||
| Remarks | 1, With water spray-bar 2, Rear vacuum cleaner 3, Blower 4, Color is optional | ||||
| Optional | 1,Front and rear water spray-bar 2, Visual imaging system 3, Front hydraulic cleaning brush | ||||
Pics for Main function accessories of Road Sweeper Truck
Other Road cleaning truck we can supply
If you are interested in our trucks, pls contact me, I will send our best quotation to you.
Contact person: Krystal Zhang
Tel: +86-15171412234/13872882038
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
