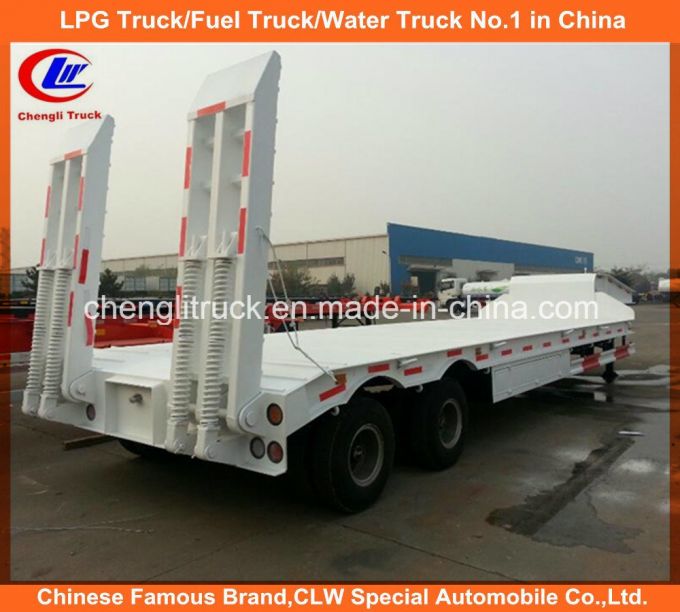

Heavy Duty 2-Axle Lowbed Semi Trailer with Mechanical Ramps
- USD 16000.18 /Unit
- 1 Unit
- 65 Unit
- 14 days
1. More than10 years product exporting experience.
2. Strictly Quality Control system
3.10 days fast delivering time
4. Suitable program suggestion,
5. Strong deck design
FAQ:
1. Why you choose us?
We have more than 50 years producing experience, good at control frame quality which is the basic of trailer lifetime. Choose us you choose professional transportation scheme supplier
2. How to trust us?
The good faith management is our philosophy, and welcome visits our company at any time. We are also willing cooperate with your certifying authority such as INTERTEK, SGS etc. For testing cargo.
3. What others we can do?
According to your order, we provide suitable trailer program, like lightweight design let transport more, rational design of the strengthening rib let trailer strong enough etc.
We also provide rational packing and shipping program, let shipment save money and security.
Chengli Special Automobile Co., Ltd is aprofessional manufacturer of all kinds of special truck and trailer as well as other special equipment. LPG tank is our most advantage key products which rank Top 5in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
We sincerely welcome you to visit our factory and provide your precious suggestion for us!
Our main products:
1. Dump Truck /Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine
3. Truck with crane /Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck /Fuel Tanker Truck
5. Water Truck /Water Tank Truck /Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck /Insulated truck/ Refrigeration truck
8. Fecal suction truck /Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )
We sincerely welcome you to visit our factory and provide your precious suggestion for us!
Sales Manager: Mr. Kitter Zhou
Mobile: +86-136 6713 2330
DIMENSIONS | |||
| TareWeight | 8500kg | ||
| OverallLength | 11700mm | ||
| OverallWidth | 2480mm | ||
| Payload | 35000kg | ||
| Work deck length: | 4000mm | ||
| Work deck Height: | 900mm | ||
| Photo for reference. Final products can be made according to exact requirements | |||
| SPECIFICATIONS | |||
| I Beam& Chassis | Heavy duty and extra durability designed Ibeam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 18 mm, width 140mm; Middle Flange 8mm,Height 500mm, Bottom Flange 20mm,width 140mm. | ||
| Axle | 3 axles | ||
| Fuwa 13 ton | |||
| Suspension | Heavy duty mechanical suspension | ||
| Floor | 3mm checker plate | ||
| Leaf Spring | 8 piece Leaf spring | ||
| King Pin | 2" Bolt-in King Pin | ||
| Landing Gear | Two-speed, manual operating, heavy duty landing gear | ||
| Wheel Rim | 8.25-22.5 wheel rim | ||
| Tire | 11R22.5 tire with one spare tire | ||
| Ramp | Mechanical ramp with spring | ||
| Spare Tire | One set of spare tire including acarrier | ||
| Braking System | WABCO RE 6relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||
| Painting | Complete Chassis sand blasting to clean rust, 1coat of anticorrosive prime, 2coats of final paint | ||
| Accessories | One standard tool box | ||
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
