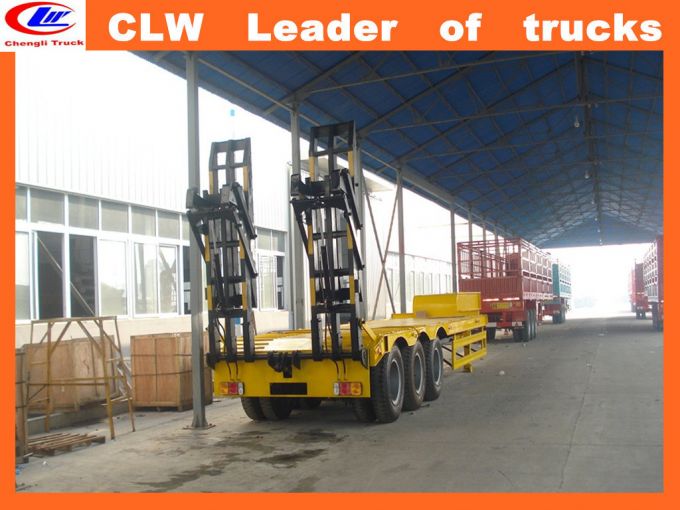

Heavy Duty Machinery Low Loader Semitrailer Lowbed Semi Trailer

Heavy Duty Machinery Lowloader Semitrailer Lowbed semitrailer
1) Manufacturer, more than 20yrs professional experience.
2) CCC, SGS and ISO9001 certificate
3) Small order can be accepted.
4) Any color and logo will be available.
5) Products can be custom-made according to your design, or diversified needs.

DIMENSIONS (13000*3000*2980)

STANDARD SPECIFICATION

Main frame:
Heavy duty and extra durability designed, Opting for high tensile steel Q345.500mm height; Top flange 20*140mm; Middle flange 12mm; Bottom flange 25*140mm, Side beam30A

1)Floor:
Steel Sheet 4mm thickness

2)Axle
Three Units BPW/FUHE/L1 13Tonne axle

3)Suspension
Stamping underslung 3axle

4)Leaf Spring
Six sets of reliable local brand, 8-piece leaf spring, 16X90mm

5) King Pin
One unit of 2Inch standard welded/bolted kingpin

6) Landing Gear
FUWA/JOST C200 heavy duty landing gear

7)Wheel Rim
Thirteen units of 9.0*22.5rim

8)Tyre
Thirteen units of 8.25R20 tyre (TRIANGLE/SHUANGQIAN/YINBAO/3A

9)Spare Wheel Carrier
One set of spare wheel carrier including ariser.

10)Pneumatic Braking System
One unit of WABCO RE 6relay valve; Four units of T30/30 spring brake chamber; Two units of T30 brake chamber, Two unit of reliable local brand 45L air tank; Two units of reliable local brand standard coppery air-connector.

11)Electrical System
International standard 24v circuit 7-pin ISO socket; Tail lamp with turn signal, brake light &reflector, side lamp etc. One set 6-core standard Cable.

12)Painting Sand blasting processing clean rust
1. Coat of anticorrosive primer
2. Coats of finish urethane paint
3. Color as customer choice

13)Accessory
One tooling box with whole set of standard trailer tool

Payment terms:
T/T 30% of goods value as deposit before start of production, and T/T 70% balance before delivering the goods.

FAQ:
1. Why you choose us?
We have more than 50 years producing experience, good at control frame quality which is the basic of trailer lifetime. Choose us you choose professional transportation scheme supplier

2. How to trust us?
The good faith management is our philosophy, and welcome visits our company at any time. We are also willing cooperate with your certifying authority such as INTERTEK, SGS etc. For testing cargo.

3. What others we can do?
According to your order, we provide suitable trailer program, like lightweight design let transport more, rational design of the strengthening rib let trailer strong enough etc.
We also provide rational packing and shipping program, let shipment save money and security.

Chengli Special Automobile Co., Ltd is aprofessional manufacturer of all kinds of special truck and trailer as well as other special equipment. LPG tank is our most advantage key products which rank Top 5in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

We sincerely welcome you to visit our factory and provide your precious suggestion for us!

Our main products:
1. Dump Truck /Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine
3. Truck with crane /Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck /Fuel Tanker Truck
5. Water Truck /Water Tank Truck /Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck /Insulated truck/ Refrigeration truck
8. Fecal suction truck /Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )

Contact:Eric Cen

Lowbed Semi Trailer100Tons
Brand Name	CLW
Model Number	FLY9402TDP
Place of Origin	Shangdong province, China
Color	Any color will be available
Gooseneck	Can be Lower to the ground when connecting with Truck Hydraulically
Rated Load	100T
Tare Weight	13T
Wheel base	1310 (mm)
Tyre Specifications	10.00R20
No. Of the Tyres	24
Axle Brand	13Tonnage XFUWA Brand
No. Of the Axles	6 Axles
Pieces of leaf-spring	10
Suspension	Heavy Duty Leaf Spring
Front/Rear Overhang	1950 mm
Outside Dimensions	14500x2500x1500 (mm)(LxWxH)
Material of the Main Beam	Q345B/ST52-3 manganese plates, automatic submerged arc, Main-beam Height 500mm, Lower flange: 20mm Upper flange: 20mm Mid Web: 12mm
Usage	For heavy duty machine, as transformer, crane, excavator transportation.
Brake System	Dual Lines Braking System With Automatic Air Chambers
Brake Air Chamber	Four double and two single chamber
Electrical System	24V, 7core socket, lights according to European standards.
Floor	3mm management plate
Tool Box	1 box of standard tools
Spare tire carrier	2 sets
Color and Logo	Depends on the buyer's requirement.
The traction pin	2' &3.5' inter-changeable
Pin Height	According to the height of the tractor saddle.
Other Dimension and rated capacity will be available, pls contact the supplier through email. Detailed quotation with your needed data will be provided.

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container
