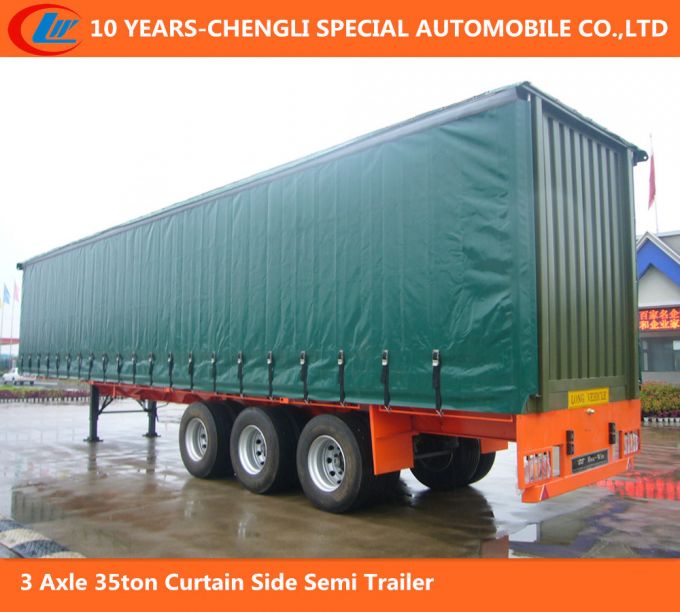

3 Axle 35ton Curtain Side Semi Trailer

3 Axle 35ton Curtain Side Semi Trailer

Techincal parameter as follows,

DIMENSIONS
TareWeight	6900kg
Payload	45000kg
OverallLength	13000mm
OverallWidth	2480mm
OverallHeight	3950mm
Photo for reference, final product can be made accordingto exact requirements
SPECIFICATIONS
I beam &Chassis	Heavy duty and extra durability designed Ibeam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm, height 500mm; Bottom Flange 16mm,width 140mm.
Axle	3 axle
	BPW 13Ton, FUWA, L1 brand are optional
Suspension	Mechanical suspension or Air Suspension upon requirement
Leaf Spring	8-piece leaf spring
Curtain Material	PVC, fitted with buckles
Slide Chunnel	Aluminum alloy double slide Chunnel
King Pin	JOST brand 2" Bolt-in King Pin
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim	8.25-22.5 steel wheel rim, 13 pieces including one spare
Tire	11R22.5 tubeless tire with one spare tire, 13 pieces
Spare Tire	One set of spare tire including acarrier
Braking System	WABCO RE 6relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting	Complete Chassis sand blasting to clean rust, 1coat of anticorrosive prime, 2coats of final paint
Accessories	One standard tool box

Our main products:

1. Dump Truck /Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine
3. Truck with crane /Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck /Fuel Tanker Truck
5. Water Truck /Water Tank Truck /Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck /Insulated truck/ Refrigeration truck
8. Fecal suction truck /Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )

FAQ:

1.Are you amanufacturer or trading company?
We are top three of special automobile manufacturer of China.

2.Where is your factory location, and can we visit it?
Chengli group is located in Suizhou city, Hubei province, China.
It is my pleasure that if you will come to our factory, our chauffeur and me will pick you up at Wuhan international airpoort.

3.What is your MOQ (Minimum Order Quantity)?
MOQ is 1!

4.What is your payment terms?
T/T or L/C.

5.And how about the shipping ways?
Ro-ro ship, bulk ship, or as your requested.

6.How about the delivery times?
It will takes about 7-30 days, depends on your products requests.

7.How do we start aorder?
We should sign the contract and 30% payment as deposit, and balance payment before delivery.

8.How long is the warranty, and any after-sales service?
The warranty will be 1year or 10,000km, and our professionals will solve your problems at anytime.

Company information:

We, Hubei Chengli Special Automobile Co., Ltd., were established in 2004. We are aprofessional manufacturer and exporter that is concerned with the design, development and production of special trucks, including LPG Trucks, cement mixer trucks, water trucks, Refrigerator trucks, Cargo trucks and others. All of our products comply with international quality standards and are greatly appreciated in avariety of markets around the world.

How to contact us:
Click the "talk to me" on the front of the pages or send me email.
Chengli Special Automobile Co., Ltd.,
Customised truck &trailer solutions to meet your operational requirements
Ms. Cherry Zhou
Factory: Chengli Automobile Industry Park,Suizhou, Hubei, China
Office: Room 3102, 7th Building, No. 299 Huaihai Road, Wuhan, China
Tel: +86 27 8379 6298Fax: +86 27 8379 6298
Mob: +86 15171731532
Web: clwvehicle

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container
