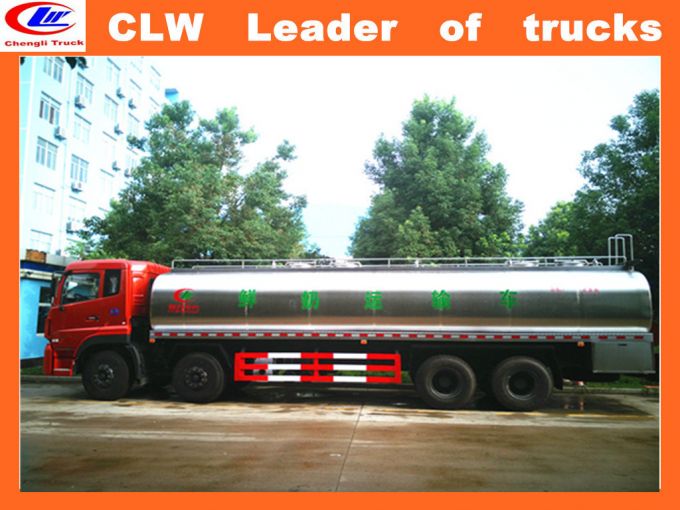

Dongfeng 8*4 Fresh Milk Transport Truck 12 Ton Stainless Steel Milk Tanker

8*4 fresh milk transport truck 12 ton stainless steel milk tanker

East or West,Chengli Special Automobile Co., Ltd is the Best.

Our advantage:

Competitive Price and Excellent Quality,

More than 10 years' experience as a manufacturer,

CCC,ISO,BV certification,

Perfect after-sale service,

Export covering More than 50 countries and regions ,

Annual production value topped 1500,000,000 RMB (240,000,000 US dollars) per year.

Chengli Special Automobile Co., Ltd, as the "Alibaba Group" in the special vehicle circle, has developed into the biggest professional special vehicle manufacturer of central China starting from scratch since 2004.

LPG tank is one of our most advantageous key products which ranks Top 5 in China, excellent engineers and high-grade production equipment as well as strict quality control system can ensure all the tank work well with 10-20 years use life.

Milk truck/milk transport truck/milk lorry developed by our company covering SINOTRUK,DFAC,ISUZU,FAW,FOTON,JAC,JMC brand, having characteristics such as high intensity, fire retardant, waterproof, static proof, fireworks alarming.

Technical feature:
[1]The milk tank is made up of three layers:outside layer(for physical protection),middle layer(thermal insulation),inner layer tank(for milk filling).

[2]The thickness of thermal insulation layer is 80mm

[3]The tank liner is made of high quality food grade stainless steel,and the inner tank has been fine polished.

[4]Equipped with PIC cleaning devices.With function of thermal insulation: medium temperature change≤1°C during 24 hours.

[5]The tank can be divided into several parts according to demand to load different materials.

Chengli Special automobile Co., Ltd also provide products as follows:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water Truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck Mounted Crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck,sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

1)For more information ,please contact us Freely

2)Contact person: Shirley Fu

3)Telephone number:+(86)-138 7288 2021

6) To see is to believe. Welcome to visit Chengli Special Automobile Co., Ltd.

Parameter

Dongfeng 25000L Milk Tank Truck(8x4,260hp)
Emission Standard		Euro 2
Chassis model		DFL1311A3
Driving Type		8×4
Dimensions
Wheelbase(mm)		1950+4500+1300
Overall Dimension(mm)		11990×2500×3690
Milk tanker size(mm)		9250/2430/1660(length/long axle/short axle)
Weights
GVW(kg)		31000
Rated payload weight(kg)		17000
Curb weight(kg)		13800
Front axle		5 Ton front axle load capacity
Rear/middle axle		10Ton
Front trade(mm)		1940/1940,1986/1986,2040/2040
Rear trade(mm)		1860/1860
Front/rear overhang(mm)		1460/2730
Approach angle(°)		28
Departure angle(°)		10
Max speed(km/h)		90
Engine
Engine model		C260 33
Engine type		4 stroke water-cooled, overhead camshaft, direct injection, Inter cooling engine
No. of cylinders		straight-6 cylinders
Displacement(L)		8.3L
Max. output (kw/Ps/rpm)		191kw(260ps)/2200 rpm
Max torque/Speed(N.m/rpm)		1090 N.m/1200rpm
Drive Line
Clutch description		¢430,dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance
Transmission		Transmission model: 9JS119TB 9 forwarder,1 reverse gear,manual operation
Tanker body
Tanker body size(mm)		25 M3
Milk tanker material		Stainless steel
Tire specification
Tire specification		11.00R20,10 tires+1 spare tire
Cab description
Model		D310-S
Special function of water tank truck
Milk tanker material	high quality food grade stainless steel (Q304)
Manhole	Man way access hole on top of tank;2-4 units manhole
Special function
Special Function	1. The milk tank is made up of three layers:outside layer(for physical protection),middle layer(thermal insulation),inner layer tank(for milk filling). 2.The thickness of thermal insulation layer is 80mm 3. The tank liner is made of high quality food grade stainless steel,and the inner tank has been fine polished. 4. Equipped with PIC cleaning devices. 5. With function of thermal insulation: medium temperature change≤1°C during 24 hours. 6. The tank can be divided into several parts according to demand to load different materials .

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container
