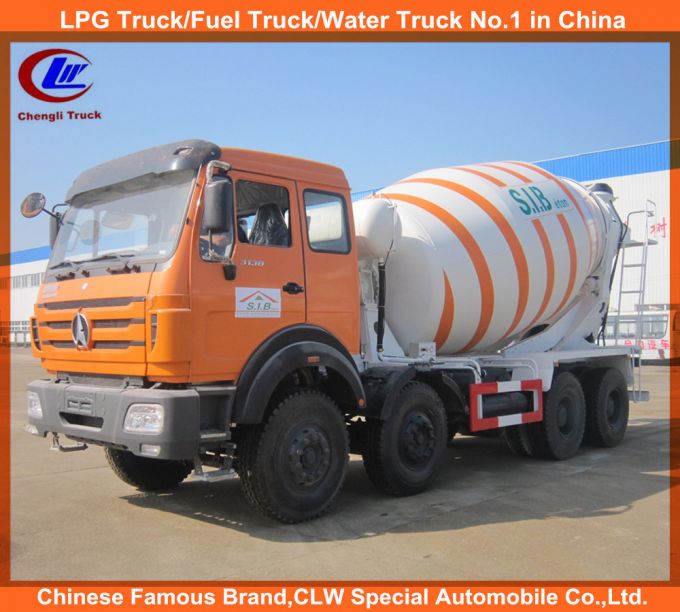

15000L North Benz Beiben Concrete Mixer Truck
- USD 35000.43 /Unit
- 1 Unit
- 43 Unit
- 12 days
1, North Benz Brand, Benz technology, 10-15CBM Capacity
2, imported hydraulic system
3, Well stirring, high speed of feeding & discharging
4, Low oil consumption with strong horse power 336HP
Chengli Special Automobile Co., Ltd
1. We are professional manufacturers for the special vehicles. We can supply all brands of special trucks, such as north Benz(beiben), Faw, Foton, Shaanxi, Sinotruck, JAC, JMC, ISUZU, DONGFENG.
2. Our annual turnover has increased to 1.5 billion USD.
3. The annual truck export amount ranks top 10 in China.
4. Our main business includes producing special trucks and selling chassis, trucks and trucks' spare parts.
If you are interested in our trucks, pls contact me, I will send our best quotation to you.
Contact person: Krystal Zhang
Tel: +86-15171412234
| ChassisTechnicalSpecification | ||||
| ProductName | BeiBen8*4ConcreteMixerTruck | |||
| Chassis | ND1316D35J | |||
| Fueltype | Diesel | |||
| Cabin | oneandhalfrow | |||
| Vehicleinformation(mm) | Overalldimensions(L×W×H) | 10550*2500*3990 | ||
| Wheelbase | 1500+3550+1450 | |||
| Min.groundclearance | 500 | |||
| Weightdata(kg) | G.V.W | 31000 | ||
| Curbweight(chassis) | 16500 | |||
| Maxpayload | 25t | |||
| Wholevehicle mainperformance | Max.speed(km/h) | 90 | ||
| Max.slopeofclimb(%) | 30 | |||
| Engine | Model | WP10.336N | ||
| Maximumpower | 247kw/336hp | |||
| Numberofcylinders | 6 | |||
| Displacement(ml) | 9726 | |||
| Emissionstandard | Euro3 | |||
| Gearbox | Model | 9T-160 | ||
| Axle | FrontLoadcapacity(ton) | 13t(doubleaxle) | ||
| RearLoadcapacity(ton) | 18t(doubleaxle) | |||
| Suspension | Leafspring | 12/12/13+7 | ||
| SteeringWheel | left/righthanddrive | optional | ||
| Brakesystem | Servicebrake | Airbraking | ||
| Electricdevice | Ratedvoltage | 24V | ||
| Tyres&Quantity | 12.00R20&12+1 | |||
| Concretemixertrucktechnologyinformation | ||||
| Mixerdrumparameter | Tankermaterial | 16MnQ345 | ||
| Factcubage | 10~14cbm | |||
| Fillingspeed | ≥2.8cbm/min | |||
| Unloadingspeed | ≥1.2cbm/min | |||
| Dischargeresideratio | ≤0.5% | |||
| Mixerdrumrotationspeed | 0~12(rpm) | |||
| Drivingsystem | Reducer | ItalyBrand | ||
| Hydraulicpump | ItalyBrandorUSABrand | |||
| Hydraulicmotor | JapaneseBrand | |||
| Heatdevice | MadeinChina | |||
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
