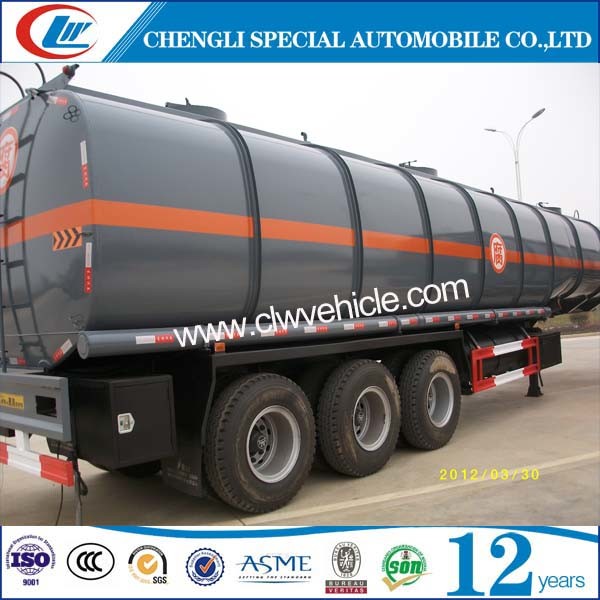

3 Alxes 35cbm Asphalt Distributor Tank Trailer

3 alxes 35cbm Asphalt Distributor Tanker semi trailer



Synchronous Chipsealer/Road Construction Equipment/Asphalt macadam/Roading maintance truck/ automatic asphalt distribution truck developed by our company covering SINOTRUK, DFAC, ISUZU, FAW, FOTON, JAC, JMC brand, is mainly used for road paving. The asphalt and gravel distributor truck consists of asphalt tank, gravel tank, hydraulic system, heating system, cleaning system, control system and lifting mechanism, etc. The chip sealer is a kind of hi-tech road construction equipment at the international level. Compare with its counterparts, our chip sealers are of high automation, even spray, easy operation, large loading capacity and great efficiency.

Technical Features
1. Synchronous chip sealer adopts famous brand chassis with reliable quality.
2. Asphalt tank adopts the heat preservation material of silicon acid aluminum and with good performance of heat preservation.
3. Asphalt tank can spray with certain quantity by fixed spray pipe or spray by hand spray gun. Asphalt pump is installed outside for convenience or for operations.
4. Pipeline cleaning adopts heat conducting oil and can be cleaned with high pressure air. The nozzles are not easily jammed.
5. The structure of chipping spread part is compact. It is comfortable for driving and convenient for use.

3 alxes 35cbm Asphalt Distributor Tank
Tank Main parameter	Tank effective volumn(m3)	35	shape	Ellipse
	G.V.W(Kg)	40000	Overall dimension (mm)	11500*2480*1850
	Curb weight(Kg)	8800	Rated weight(Kg)	320000
	Wheel base(mm)	5900+1310+1310	Materials	Q235A
	Drive type	6*4 6*2 4*2	Max.Speed(km/h)	90
	End plate	Q235A/6mm, by punching
	Spurn water	Q235A/5mm, 20 inch manhole 508MM
	Manhole cover	3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve
	Unloading valve	2 sets of DN80 fixed at button of Tank
	Pipeline	4"seamless steel tube/Q235 100MM
	Labeling system	Oil Type Indication
	Anti-static electricity system	pulling, wire carrier, sheet copper (6 sheet, reasonable layout)
Other parts	Ladder	1 unit at front of Tank
	Guard	Zinc galvanizing net
	Oil hose box	Circular single hole tube, 1 unit on each side
	Oil hose	2 unit, 3" x 6mm size in black rubber
	Side guard	cross bar structure
	Rear button guard	Fixed Type
	Work tank deck	Box Type
	Fire extinguisher box	2 unit at back of each side
	Mud guard	trapezoid structure in steel
	Lights and wire	24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
Chassis	Main Beams	Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
	Axle	TwounitsofBPW12ton axle
	Landing Gear	28T, 19" ,JOSTTwo Speed Manual Operation
	King Pin	One unit of2"bolt-in king pin
	Suspension	German stylemechanicaltandemsuspensionwith 11mm x 100mm 13 leaf springs
	Pneumatic Braking System	One units of WABCO RE 6 relay valve; four units of T30/30 chamber; one units of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector.
	Wheel rim	nineunits of7.5-20 rim
	Tire	11.00R20,11.00-20,295/80R22.5
Painting	1. Sand blasting processing clean rust 2. One coats of anticorrosive 3.Two coats of finish urethane paint 4. Colour as customer choice
