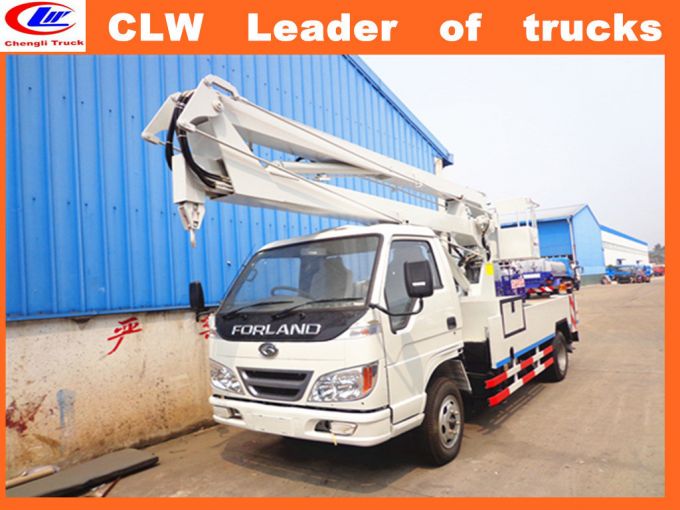

Foton 4*2 High Lifting Platform Truck

6 wheeler FOTON High Lifting Platform Truck High-Altitude Operation Truck

Features:
1. imported electro-hydraulic ration control valve, step less speed regulation
2. Ground & basket electro-hydraulic control.
3. Little folding beam, outreach widely
4. Large load capacity of platform
5. Telescopic lifting beam, higher lifting height from 12m to 22m.
6. Rotate degree 360 degree. ( left or right)
7. Function of position restriction, alarm in dangerous working status, high security performance
8. Large span of triggers, higher stability, triggers can be operated simultaneously or respectively
9. Urgent power.
10. Inter-lock performance, safe and reliable operation.

FOTON 4X2 high lifting platform truck high-altitude operation truck

Product advantage:
1. Factory export department directly sale
2. Export experience more than 12 years
3. Cheap / competitive price, high quality, you get more than your paid
4. With CCC, ISO, BV approved
5. The heart of the service, rational design
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Item		unit	parameter
Vehiclemodel			FOTON 4x2HighplatformTruck
Chassismodel
Overalldimensions		mm	7400*1980*3110mm
	Factheight	M	14
	Maximumoperationradius		6.0
	Massinworkingorder		4498
	Wheelbase	Mm	3300
	F/Rtrackbase		1500/1406
	Approach/departureangle		23/15
Exhaust/hp		ml/ps	3707/95
Maxspeed		km/h	90
Tirespecification		7.00-16	Enginetype	SD4BW70-3R
Tractionsystem		4*2	Transmission	5-speedwithoverdrive
Numberofaxles		3	Electricsystem	24v
Operationcontrolsystem		Electricallyhydrauliccontrol	AllowablepassengersinCab	5
Engine		SIDAEnvironmentalProtection,supercharge,dieselengine
Equipment		Maxoperationheight>14m,maxoperationradius>6m,maxworkingplatformheight>12.5m, workingplatformratingloading=200kg,workingplatformratingallowablepassengers=2, workingplatformdimension:1100*570*1000mm,360°turning(leftorright),4H-shapelegs. WithAirconditioner.

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container
