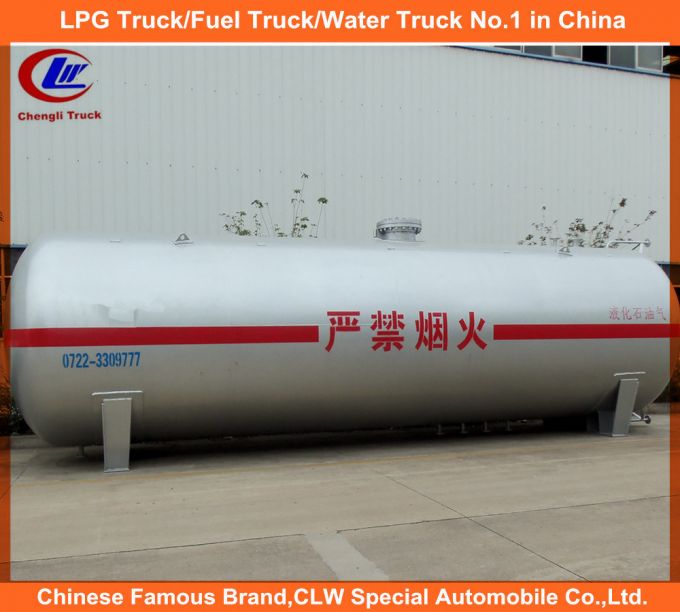

50, 000 Liters LPG Storage Tank for African Market

50,000 Liters lpg storage tank ISO lpg gas tank 5000 Liters lpg tank for Nigeria

Tank capacity: 5000 Liters , 10000 liters, 15000 Liters, 20000 Liters, 25000 Liters, 27000 Liters, 30000 Liters, 35000 Liters, 50000 liters, 80000 liters, 100000 liters .

Technique Parameters

DIMENSIONS
Volume of Tank (cbm)	50
Tare Weight (kg)	11470
Filling Capacity (kg)	19950
Thickness of Shell (mm)	16
Thickness of Endplate (mm)	16
tank cylinder diameter (mm)	2800
External Dimensions (mm) (length×width×height)	8612*2832*3422
Material of Tank and Main Pressure Parts	Carbon Steel Q345R(carbon and low alloy steel)
Filling Medium	Liquefied Petroleum Gas
Design Pressure	1.77MPa ( 256.65 Psi)
Test Pressure	2.20MPa (319.15Psi)
Corrosion Allowance	1 mm
Medium Density	420 kg/ cbm
Bottom of Tank	metal saddle
Carried Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels.
Safety Valve of Selection Fitting: pressure relief valve, Column magnectic reversible level meter, Pressure gauge, Thermometer, Cut-off valve

Chengli Special Automobile Co., Ltd
1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.


Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
13. Pressure Vessel

If you are interested in our trucks, pls contact me, I will send our best quotation to you.

Contact person: Krystal Zhang
Tel: +86-15171412234

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container
