10ton LPG Tanker Small 5tone Cylinder Filling Plant

lpg tanker lpg tank 5cm-20cbm LPG pressure vessel

Features:

1. Our LPG product: LPG tanker (5cbm to 120cbm); LPG container tank (20ft, 40ft); LPG semitrailer

2. New design: Attractive appearance and safety in usage

3. Certificate ISO9001 and 3CWe're expecting friends from all over the world to come to visit our factory.

4. High quality& resonable price

5. 5-120 M3 lpg tanks, LPG storage tank, propane storage tanks

LPG storage tanks, lpg tanks, lpg tanker perameters

Item		unit	Parameter

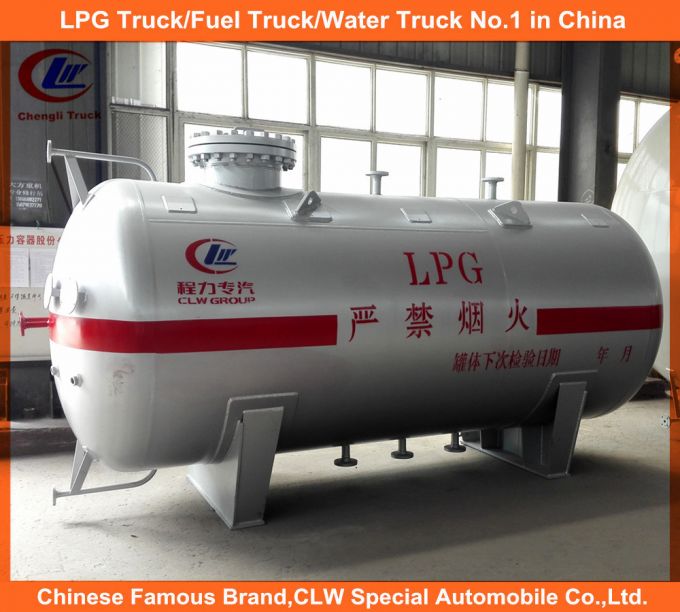

Products name			LPG storage tanker
Products number			CLG1600-5
Filling medium			LPG(propane)
Overall dimensions(L*W*H)		mm	3070*1620*2210
Tank size (inner diameter*thickness*length)		mm	DN1600*10*3070
Volume		m3	5.6
Curb weight		Kg	2030
Designing pressure		Mpa	1.77
Working pressure		Mpa	≤1.6
Working temperature		°C	≤50
Hydraulic test pressure		Mpa	2.22
Air test pressure		Mpa	1.77
Material of tank and accessory		Q345R,16Mn,III
Implementation of standards		GB150 Steel Pressure Vessel and Pressure Vessel Safety Technical Supervision Regulation
Optional safety accessories		Safety valve, magnetic flap, level gauge, pressure gauge, thermometer, globe valve,etc

Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl ether, methanol, butadiene, butane, ethylene oxide, methylamine, etc.in low pressure liquefied gases at room temperature; volume from 10 cubic meters --- 100 cubic optional.
Chengli pressure components of the productIion materials, size and weld quality, operation quality, installation quality, safety valves and shut off valves devices and accessories within the strict qualification,inspection , test .the tank materials on physical and chemical tests such as: mechanical properties and chemical composition.
the tank welded joints, welding line , tank head, the pressure of the geometric location of each component through rigorous X-ray non-destructive testing and magnetic particle testing inspection.
seal on the product, pressure, and those who can affect the operation of product safety testing various technical indicators.
A, B Class 100% ray weld inspection, II level qualified
C, D Class welds 100% magnetic particle inspection, I level qualified

CLW SERIES PRODUCT------ YOUR FRIST CHOICE IN CHINA
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

Seeing is beliving , CLW SPECIAL AUTOMOBILE CO., LTD welcome you!

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container
