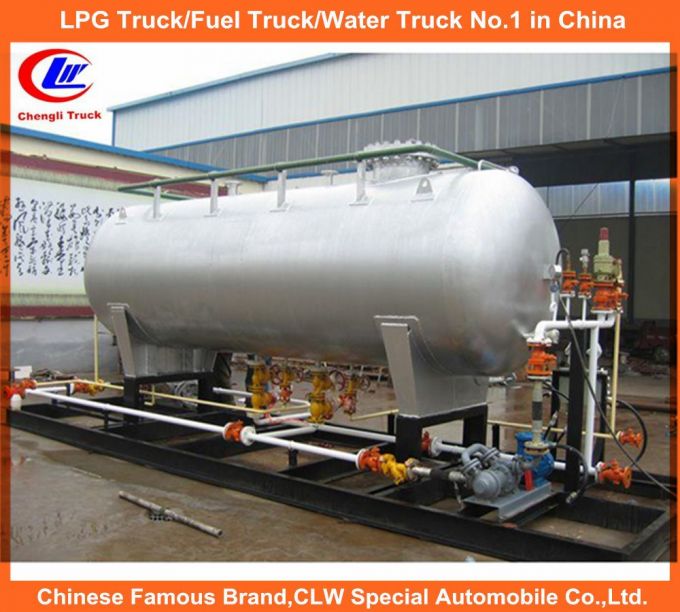

5000L 10000L LPG Skid Mounted Dual Dispensing Filling Station

Double Nozzle Dispenser LPG Filling Station 5000L, 10000L LPG Skid Station for Propane Isobutane

Payloading Weight	ton	5ton, 6ton 10ton,12ton,15ton,25ton, 30ton,40ton,50ton,60ton,
	metric ton	5metic ton,5metric ton,10metric ton, 20metric ton, 30metric ton, 40metric ton,50metric ton,60metric ton, 70metric ton,80metric ton
	kg	5000kg 6000kg 12000kg
Description	Title	lpg tank, lpg storage tank, lpg transport tank, lpg tanker trailers, propane transport trailers for sale, propane tanker trailers for sale, 20m3 lpg skid filling station,lpg filling skid station, gas filling station, lpg skid-mounted filling station,lpg cylinder filling plant, lpg cylinde filling station
Volume	cbm	5cbm 10cbm 15cbm 12cbm 20cbm 25cbm 30cbm 40cbm 50cbm,60cbm 70cbm 80cbm 100cbm 120cbm
	m3	5m3 10m3 12m3 15m3 20m3 25m3 30m3 40m3 50m3 60m3 70m3 80m3 100m3 120m3
	liters	5000liter 10000liter 12000liter 15000liter 20000liter 25000liter 30000liter 40000liter 50000liter 60000liter 70000liter 80000liter 90000liter

Features:
1.Factory direct sale with the high workmanship, reasonable price.
2.Capacity:5m3, 8m3, 10m3, 12m3, 15m3, 20m3, 25m3, 32m3, 50m3, 60m3, 65m3, 80m3, 100m3, 120m3
3.New design:Attractive appearance and safety in usage
4.Certificate ISO9001 and 3C, .We're expecting friends from all over the world to come to visit our factory.

LPG series products:
1.LPG storage tank of all kinds of size(5m3, 8m3, 10m3, 12m3, 15m3, 20m3, 25m3, 32m3, 50m3, 60m3, 65m3, 80m3, 100m3, 120m3)
2.LPG Truck/LPG Tanker truck/LPG tank truck
3.LPG semi-trailer

CLW SERIES PRODUCT------ YOUR FRIST CHOICE IN China
Chengli Special Automobile Co., Ltd is aprofessional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.


Our main products:
1.Dump Truck /Tipper Truck/Side Tipper/End Tipper
2.Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine
3.Truck with crane /Truck Mounted Crane
4.LPG Tank Truck Trailer/Oil Tank Truck /Fuel Tanker Truck
5.Water Truck /Water Tank Truck /Water Sprinkler Truck
6.Concrete Mixer Truck
7.Van truck /Insulated truck/ Refrigeration truck
8.Fecal suction truck /Sewage Suction Truck,
9.Cement Powder Tank truck/ Bulk Cement Truck
10.High-altitude operation truck,
11.Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12.Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc.)
We sincerely welcome you to visit our factory and provide your precious suggestion for us!
Contact information:

Sales Manager: Mr. Kitter Zhou
Cell:+86 136 6713 2330

Item	Unit	Parameter
Product Name		Liquefied Gas Storage Tank
Manufacturer Name		ChengLi Special Automobile Co., Ltd
Model		CLG3100-100
Overall dimensions	Mm	13866*3132*3722
Tank Dimension		DN3100*16*13866(inner dia*thickness*length)
Fact cubic meters	Cbm	100
Total Mass in working order	Kg	60000kg
Working pressure	Mpa	≤1.6
Testing hydraulic pressure		2.22
Testing pressure for gas density		1.77
Working temperature		≤50
Other	Tank material:16MnQ345R, 16mm thickness;Seal cover:18mm thickness;Pressure relief valve model:A42F-2.5-80, open pressure:1.68-1.76Mpa;LPG density:0.42t/m3 for propane.Mark dangerous caution on tank.

Safety accessory:

Items	Model Number	Quantity
Tank	50 CBM	1 unit
Cut-offValve	DN50	6 Pieces
Cut-offValve	DN25	2 Pieces
Cut-offValve	DN80	1 Pieces
Needlevalve	J24W, M20×1.5	1 Pieces
SafetyValve	DN80	1 Pieces
Magnetic reversible level gauge	UZFAL-2.5RF2640-0.50	1 Pieces
Pressure gauge	M20×1.5 1.5Level 0~4MPA	1 Pieces
Thermometer	M33×22.5Level	1 Pieces

Skid station accessory:

Accessory	Quantity
Cut-offValve	9 Pieces
Compressor	1.5MPa
Shock-absorbing Tube	1 Set
Filling pump machine	2 Pieces
Discharge Pipe	5 Miters/set, 2sets
Anti static electric motor	1 Piece
Bottom base	1 Unit

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container
