ChengLi SINOTRUK HOWO 6x4 8 cubic concrete mixer truck

FOB Price: USD 64800.00 /Unit
Chassis: Howo,Sinotruk
Drive Wheel: 6x4
Capacity: 8m3
Emission: Euro 3,Euro 4
Engine:
Dimension(mm):
Min.Order: 1 Unit
Supply Ability: 100 Unit
Delivery time： 3 days

Product Description

Concrete mixer truck is widely used to transport and mix concrete up to the construction site, such as skyscraper construction, bridge construction,high way construction and so on. Due to different size of the drum, the concrete mixer truck can be divided into different models from 2 cbm to 16cbm with different special chassis,like dongfeng, foton, dayun,jiefang and sinotruck.

Main Technical Parameter
Product Name	Cement Mixer Truck	Overall Dimension(mm)	9300×2500×3940
Gross Weight(Kg)	25000	Curb Weight(Kg)	10945
Axle No.	3	Axle Load(Kg)	7000/18000(parallel installed)
Wheelbase(mm)	3625+1350	Max Speed(Km/h)	78
Chassis Technical Parameter
Chassis Model	ZZ1257N3647	Chassis Brand	SINO TRUCK
Overall Dimension(mm)	7905×2496×3050	Tyre No.	10 tyre with 1 spare tyre
F/ R Suspension(mm)	1540/1390	Tyre Specification	12.00-20
Front Track(mm)	2022	Rear Track(mm)	1830/1830
Drive Type	6x4	App/Dep Angel (°)	20/32
Cab Allowed Person	2	Clutch	Single-dry diaphragm spring
Axle	16T Double rear axle	Air Condition	Equipped
Steering Wheel	LHD	Gear box	10 speed forward 2 reverse
Cabin	HOWO-A7 Flat Roof	Fuel Tank Volume(L)	400
Engine
Engine Model	WD615.96E	Engine Brand	SINO TRUCK
Displacement(ml)	9726	Power	371hp/276kw
Fuel Type	Diesel	Emission Standard	Euro III
Superstructure Technical Parameters
Mixer Capacity(m3)	10	Material of Drum	Q345 Carbon steel
Reducer	Italy PMP brand	Hydraulic pump/motor	Italy PMP brand

Product Images

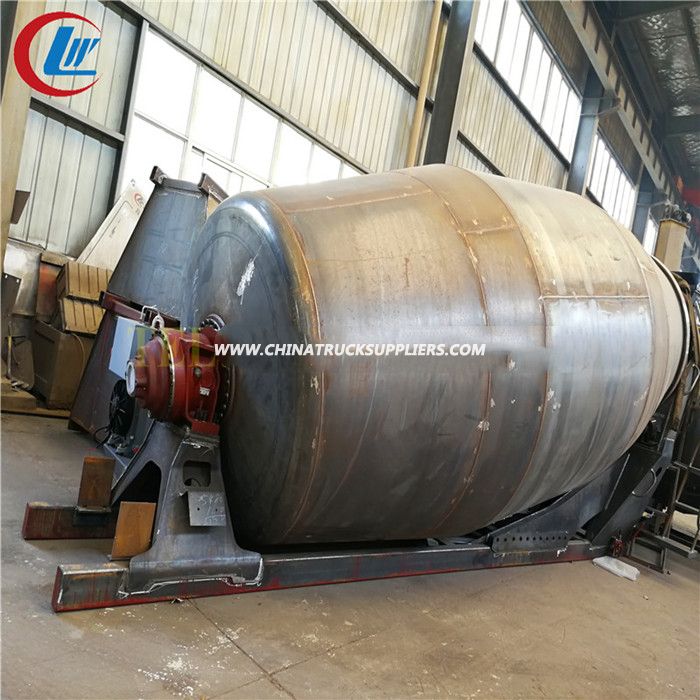

ChengLi SINOTRUK HOWO 6x4 8 cubic concrete mixer truck Images 1

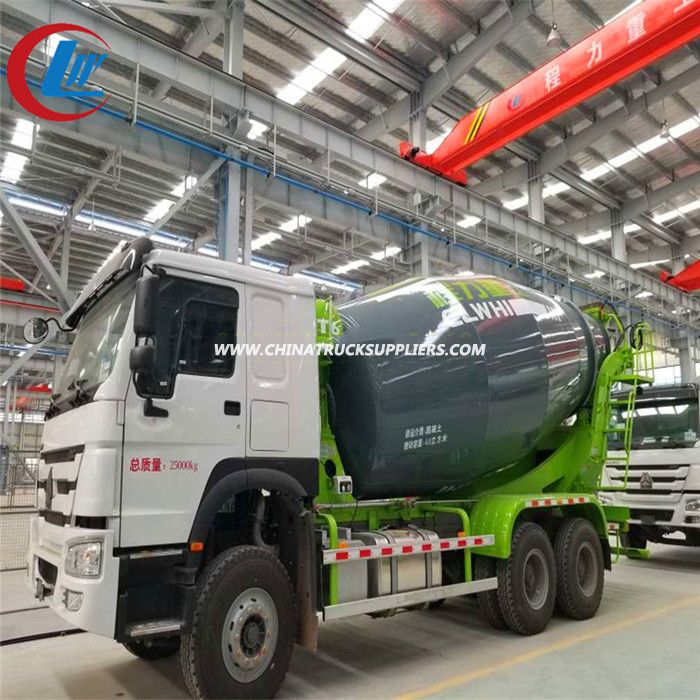

ChengLi SINOTRUK HOWO 6x4 8 cubic concrete mixer truck Images 2

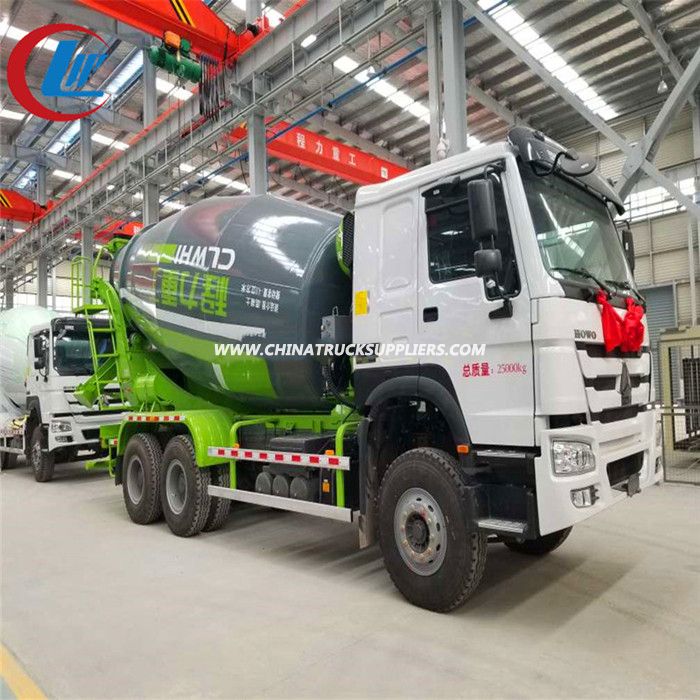

ChengLi SINOTRUK HOWO 6x4 8 cubic concrete mixer truck Images 3

Factory Show

Chengli Special Automobile Co., Ltd.

　　Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.

　　We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.

Factory Show

　　Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.

Customer Visit

Our Services

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging & Shipping

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container

Chengli Special Automobile Co., Ltd. Packaging & Shipping
