/Low Price Heli Forklift Cpcd20 Cost for Sale
- USD 6000.15 /Unit
- 1 Unit
- 37 Unit
- 29 days

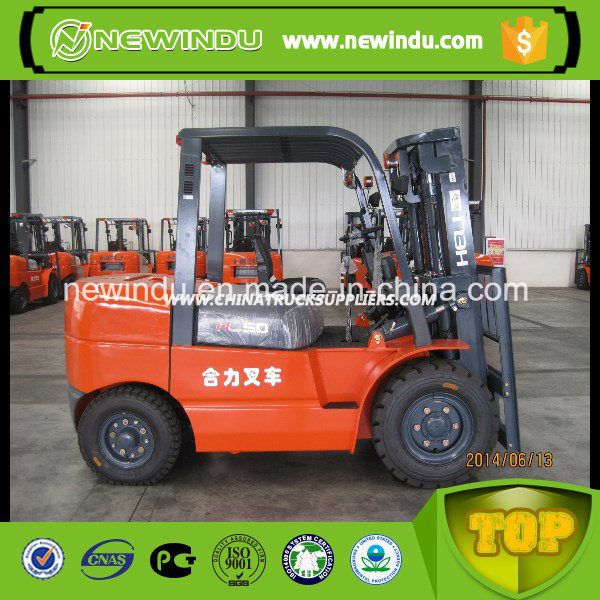

Low price HELI forklift CPCD20 cost for sale
Feature
Environmental Friendly
- The emission meets EC and EPA new regulation.
- High efficiency hydraulic system to lower the fuel consumption.
- Using environmental friendly material.
- Damping device on the mast to reduce impact and vibration.
- Sound insulating and absorbing device are used to reduce the noise.
Ergonomics design
- Using power braking system to reduce footplate strength.
- Control lever right located to effectively reduce drivers arm tiredness.
- Dual combined switch lever as a car to enable easy operating.
- Wide mast with good visibility.
- Wide space for boarding and driving , increasing leg space.
- Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off.
Parameters
| Engine | Model | ISUZU C240 | |
| Rated Output | 34.5/2500 | Kw/rpm | |
| Rated Torque | 139/1800 | N·m/rpm | |
| No.of cylinder | 4 | ||
| Bore×stroke | 86×102 | mm | |
| Displacement | 2.369 | L | |
Dimensions | Lifting Height | 3000 | mm |
| LxWxH(with Fork) | 3574x1160x2071 | mm | |
| Turning radius | 2172 | mm | |
| Mast tilt angle(F/R) | 6/12 | Degree | |
Performance | Travel speed(full load/no load) | 19/20 | Km/h |
| Lift speed (with load) | 470 | mm/sec | |
| Max.gradeability | 20 | % | |
| Self weight | 3500 | Kg | |
Wheel&tires | Front | 7.00-12-12PR | |
| Rear | 6.00-9-10PR | ||
| Wheelbase | 1600 | mm | |
| Min.ground clearance(mast) | 110 | mm |
