/China Yto Battery Forklift Machine Cpd20 Price
- USD 5000.20 /Unit
- 1 Unit
- 26 Unit
- 29 days
Product Description

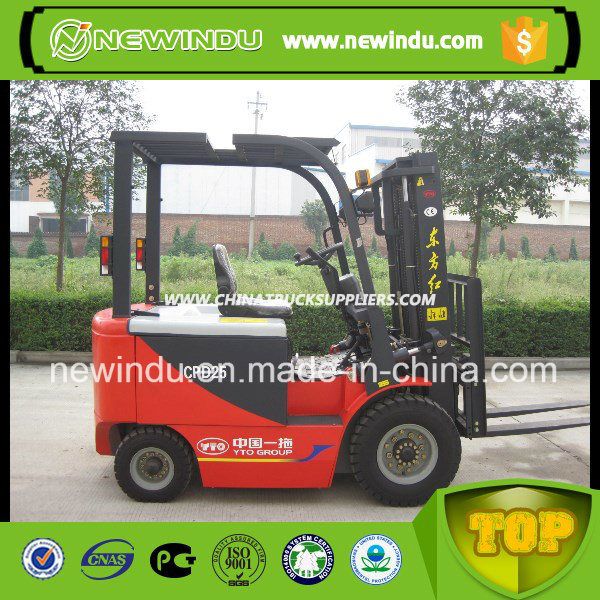

China YTO battery forklift machine CPD20 price
Feature
YTO 2 ton Small Motor Forklift CPD20
1.Power type Battary
2.Rated capacity 2ton
3.Motor 6.3-8.6kw
Parameters
| Speciality parameter | Model | CPD20 | |||||
| Power type | Battery | ||||||
| Rated capacity | kg | 2000 | |||||
| Load center | d | mm | 500 | ||||
| Lift height | h2 | mm | 3000 | ||||
| Mast tilt angle (forward/backward) | α/β | Deg | 6/12 | ||||
| Front overhang | L3 | mm | 483 | ||||
| Wheel-base | L4 | mm | 1500 | ||||
| Tread(front/rear) | b4/b5 | mm | 970/950 | ||||
| Performance parameter | Travel brake | Hydraulic-Foot pedal | |||||
| Parking brake | Mechanical-Hand lever | ||||||
| Lift speed(with/without load) | mm/s | 260/400 | |||||
| Lower speed (with/without load) | mm/s | (with load)300 | |||||
| Travel speed (with/without load) | km/h | 11/12 | |||||
| Max. gradeability (with load) | % | 1 | |||||
| Power, transmission and others | motor | Driving motor | Model | XQ-6.3-1T | |||
| Rated power | kw | 6.3 | |||||
| Rated rotation | r/min | 1200 | |||||
| Working motor | Model | XQD-8.6-C | |||||
| Rated power | kw | 8.6 | |||||
| Rated rotation | r/min | 1550 | |||||
| Controller | Manufacturer | GE | |||||
| Type | MOSFET | ||||||
| Battery | Voltage | V | 48 | ||||
| Capacity | Ah | 630 | |||||
| Size(L×W×H) | mm | 820×1065×520 | |||||
| Gearbox | Transmission type | Mechanical | |||||
| Tire | type | Pneumatic tyre | |||||
| Model | Front | 7.00-12-12PR | |||||
| Rear | 18×7-8-14PR | ||||||
| Other | Self.weight | kg | 3970 | ||||
| Free lift height | h4 | mm | 140 | ||||
| Fork | Thickness×Width×Length | c×b×a | mm | 40×125×1070 | |||
| Overall dimensions | Overall length(without forks) | L2 | mm | 2380 | |||
| Overall width | b1 | mm | 1150 | ||||
| Overall height | Extended height(mast) | h1 | mm | 4030 | |||
| Lower height (mast) | h3 | mm | 1995 | ||||
| Overhead guard | h7 | mm | 2150 | ||||
| Min. turning radius | Wa | mm | 2050 | ||||
| Min. under ground clearance | Under mast | m1 | mm | 110 | |||
| Center of wheel-base | m2 | mm | 120 | ||||
