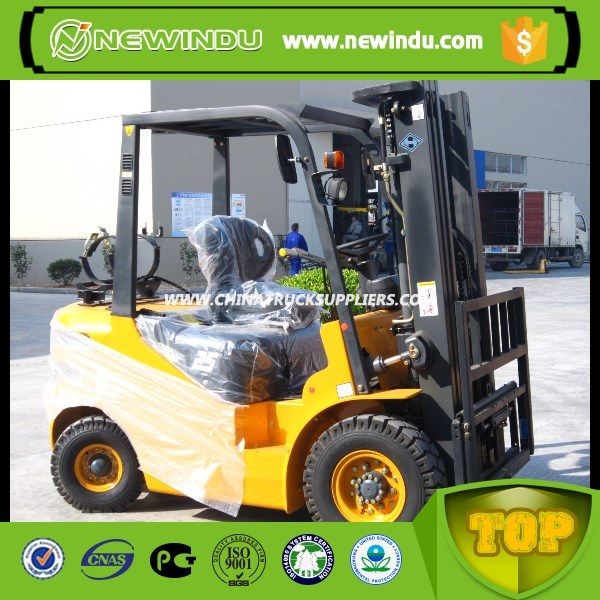

Brand New Anhui Huahe Mini 3ton Forklift Price

brand new Anhui HUAHE mini 3ton forklift price
Contact way:
Sales Manager
Alisa Wang

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109Fax: +86-21-62120109
Mobile: +86-18616224775
Web: www.newindu.com

Product description:
brand new Anhui HUAHE mini 3ton forklift price

Generals	Model		Unit	HH30ZHH30
	Power type			Diesel
	Rated capacity		Kg	3000
	Load center		mm	500
Dimensions	Lift height		mm	3000
	Free lift height		mm	142
	Fork size (L× W× T)		mm	1070× 125× 45
	Mast inclination F/R		Deg	6° /12°
	Front overhang		mm	497
	Overall Dimensions	Length to face of fork	mm	2730
		Overall width	mm	1225
		Mast lowered height	mm	2095
		Overhead guard height	mm	2120
	Turning radius		mm	2460
	Min. right angle aisle width		mm	2105
Performance	Travel speed	Unload I/II	Km/h	9/20
		Full load I/II	Km/h	8.8/19.5
	Lift speed		mm/s	400
	Max. grade ability		%	20
	Max. drawbar pull		Kn	13.5
	Self weight		Kg	4900
Wheels &Tires	Tires	Front		28x9-15-12PR
		Rear		6.50-10-10PR
	Tread	Front Q	mm	1000
		Rear S	mm	970
	Wheelbase		mm	1700
	Min. ground clearance (unload/full load)	Mast	mm	152/110
		frame	mm	166/160
Drive units &Control	Battery		V/Ah	12/105
	Engine	Model		XINCHAI 490BPG or XINCHAI A490BPG
		Rated output	Kw/rpm	37/2650
		Rated torque	N. m/rpm	148/1800
		Displacement	cc	2540
	Transmission	Type		Hydraulic
		Shift Fwd/Rwd		1/1 Power shift
	Operating pressure		Mpa	17.5
