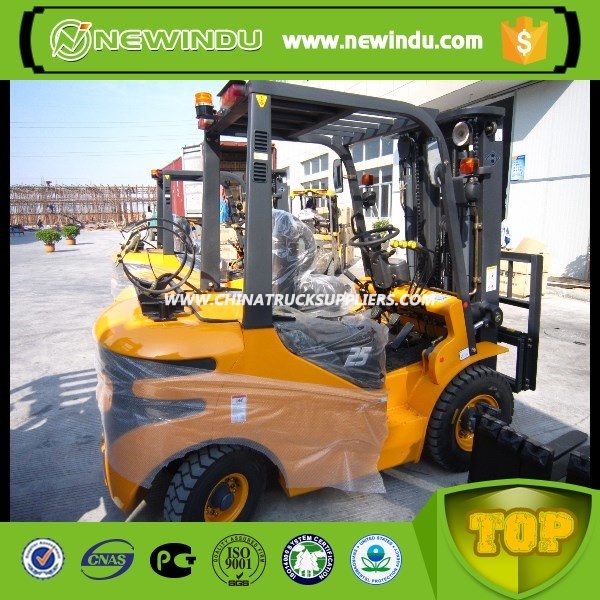

Small 3.5ton Brand New Double Filter Forklift

small 3.5ton brand new double filter forklift
Contact way:
Sales Manager
Alisa Wang

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109Fax: +86-21-62120109
Mobile :+86-18616224775
Web: www.newindu.com

Product description:
small 3.5ton brand new double filter forklift

Generals	Model		Unit	HH35	HH35Z
	Power type			Diesel
	Rated capacity		Kg	3500
	Load center		mm	500
Dimensions	Lift height		mm	3000
	Free lift height		mm	130
	Fork size (L× W× T)		mm	1070× 125× 50
	Mast inclination F/R		Deg	6° /12°
	Front overhang		mm	490
	Overall Dimensions	Length to face of fork	mm	2730
		Overall width	mm	1225
		Mast lowered height	mm	2095
		Overhead guard height	mm	2120
	Turning radius		mm	2510
	Min. right angle aisle width		mm	2200
Performance	Travel speed	Unload I/II	Km/h	9/20
		Full load I/II	Km/h	8.8/18.5
	Lift speed		mm/s	480
	Max. grade ability		%	20
	Max. drawbar pull		Kn	13
	Self weight		Kg	4700
Wheels &Tires	Tires	Front		28× 9-15-12PR
		Rear		6.50-10-10PR
	Tread	Front Q	mm	1000
		Rear S	mm	970
	Wheelbase		mm	1700
	Min. ground clearance (unload/full load)	Mast	mm	152/132
		frame	mm	158/138
Drive units &Control	Battery		V/Ah	12/90
	Engine	Model		YANMAR 4TNE98
		Rated output	Kw/rpm	44.4/2300
		Rated torque	N. m/rpm	187-207/1700
		Displacement	cc	3318
	Transmission	Type		Hydraulic
		Shift Fwd/Rwd		1/1 Power shift
	Operating pressure		Mpa	17.5
