High Quality Road Paving Machine RP802 Asphalt Concrete Paver

high quality road paving machine RP802 Asphalt Concrete Paver
Contact way:
Sales Manager
Alisa Wang

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109Fax: +86-21-62120109
Mobile+86-18616224775
Web: www.newindu.com

Product description:
high quality road paving machine RP802 Asphalt Concrete Paver

Item	Unit	RP802
Basic paving width	m	3
Max. paving width	m	8
Max. paving thickness	mm	380
Paving speed	m/min	0~14
Travel speed	km/h	0~3.0
Theoretical productivity	t/h	600
Hopper capacity	t	13
Gradeability	%	20
Pavement evenness	mm/3m	3
Cross slope error	%	±0.03
Crown adjustment range	%	0~3
Diesel engine model		BF4M1013C
Diesel engine power	kw	118
Diesel engine speed	r/min	2300
Diesel oil tank capacity	L	230
Overall weight	t	16.5~23.5
Dimension	mm	6230×3000×3855
Vibration frequency	Hz	68~71
Screed heating mode
Material level control mode
Automatic Leveling Control

Item	Unit
Screed model	575(RP802)
Type	Vibrating tamper, vibration, electrical heating
Stretch mode	Hydraulic stretch
Width range	3.0-8.0m
Vibrating tamper rotate speed	0-1500r/min
Vibration frequency	4mm

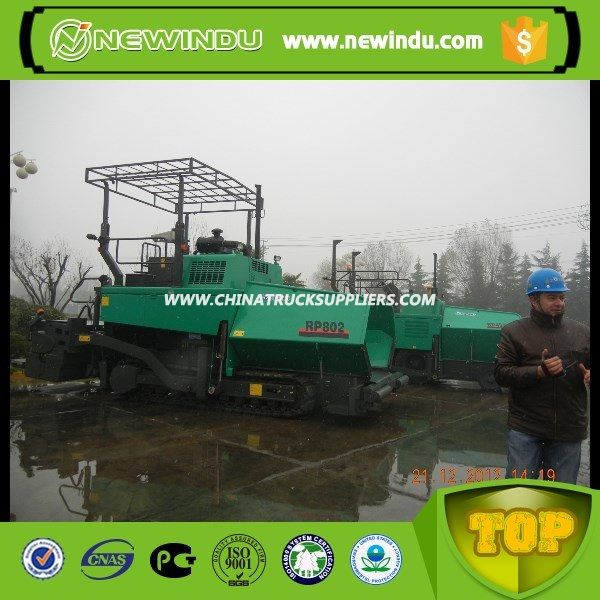

Product image:
