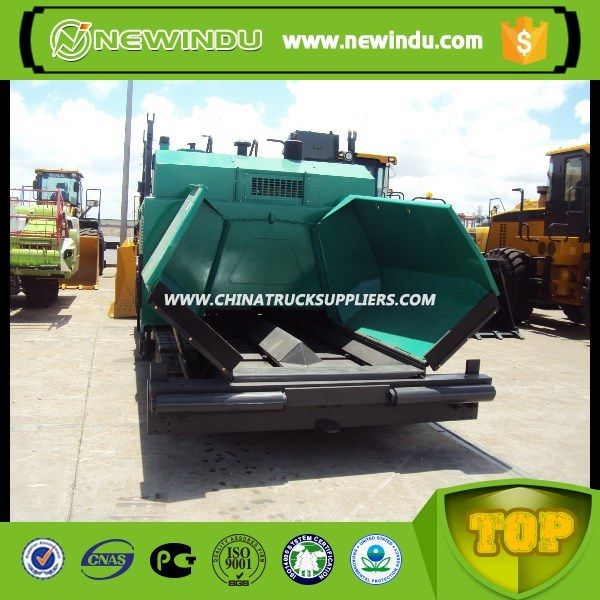

XCMG Asphalt Cement Paver RP601 2.5m Width

XCMG Asphalt Cement Paver RP601 2.5m Width
Basic paving width: 2.5m
Max. paving width: 6m
Max. paving thickness: 150mm

RP601 multifunctional paver adopts multiple advanced technologies like micro-electronic control, ultrasonic sensor, automatic electronic leveling, single vibrator and gas heating, etc. And the key matching components adopt imported products, so it achieves the technical level of similar imported products in product quality and reliability. The paving width ranges from 2.5m to 6m, which can be steplessly adjusted. The ergonomical design makes it simple and convenient to operate and maintain. Thus the product has high performance/price ratio, and it is applicable to the asphalt concrete paving for municipal construction and highways of various grades.

Items	Unit	Parameters
Basic paving width	m	2.5
Max. paving width	m	6
Max. paving thickness	mm	150
Paving speed	m/min	0~3.6
Travel speed	km/h	0~11
Theoretical Productivity	t/h	300
Hopper Capacity	t	13
Gradeability	%	20
Pavement evenness	mm/3m	3
Transverse levelling accuracy	%	±0.03
Centre crown ratio	%	0~+3
Engine model		D4114ZG2B
Engine power	kW	100
Engine speed	r/min	2400
Machine weight	t	17.4
Dimension	mm	6400x2580X3830
Vibrator speed	r/min	0~1470
Screed heating		Gas heating
Auger and conveyor control		Automatic Control by Ultrasonic Sensors
Automatic levelling control		Simulation control of electronic automatic leveler

Items	Unit	Parameters
Screed model	/	475Q
Type	/	Single vibrator+Gas heating
Extension	/	Hydraulic+Mechanical assembly
Width	m	2.5~6.0
Vibrator speed	r/min	0~1470
Vibrator amplitude	mm	4
Extra-long screed	mm	625
