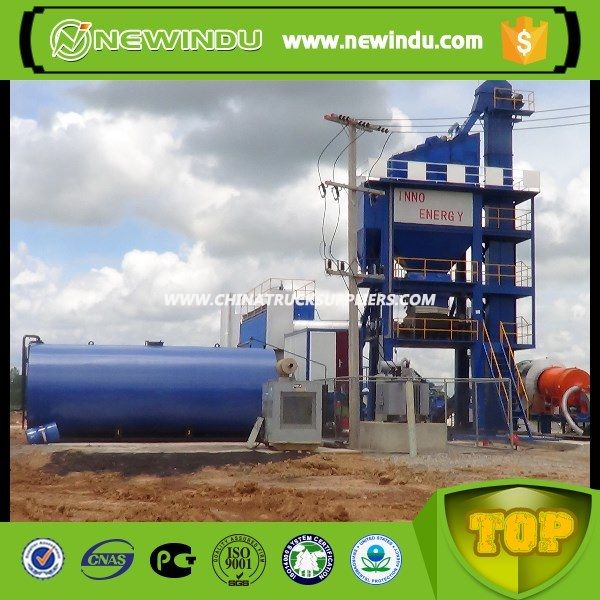

Lb2000 Asphalt Batch Mixing Plant

LB2000 Asphalt Batch Mixing Plant
1.Cold Aggregate Supply System

Bin volume and number is customizable, Separated structure design significantly reduces dimensions for shipping and ensures ahigh capacity.
Two independent cold feeders and modular design, transport expediently.
Seamless ring belt, high reliability and long life.
Frequency convertor controlled SIEMENS motor, infinite variable speed adjustment, more accurate and energy saving.

2.Drying Drum

SIEMENS motors, hard-teeth reduction gear, friction driving, drum rotating stably.
Optimized lift blade design, make sure heating equably and high energy using ratio.
With 50mm insulating layer and stainless steel skin, avoid heat be lost.

3.Burner

Italy EBICO oil burner imported with original packing, high burning efficiency, diesel, diesel/heavy oil dual purpose or gas as fuel is optional.
With automatic flame failure protection devices for emergency.

4.Dust Collection System

Two level dust collection system (volute casing collector +bag house collector), with high and low temperature protection device for the system security.
Bag house collector using USA Dupont NEMEX bags, heat resisting and long life.

5.Mixing Tower
Both aggregate and filler elevators are equipped with adouble ring chain bucket, which is more reliable and convenient for maintenance.
Twin shaft compulsory asphalt concrete mixer (the mixing arm is cross arranged with changeable gridded mixing blade), high mixing efficiency and long life.
SIEMENS motors with hard-teeth reduction gear, most stably and high performance.
Bitumen is sprayed into mixer through aspecial designed spray bar with high pressure to reduce feeding time and increase mixing uniformity.
Totally enclosed type circular vibration screen, modular design, vibration motor driving, low maintenance and long life.
Double layer much bigger hot aggregate storage hopper can effectively guarantee the continuity of the supply of hot aggregate; with 50mm insulating layer to avoid heat be lost.

Model	LB2000
Capacity	160t/h (standard working condition)
Mixer Capacity	2000kg/batch
Drying Drum	Φ2200*8500mm
Fuel Consumption	Diesel: 5.5-7kg/t; Coal:10kg/t
Measurement Accuracy	Aggregate	±0.5%
	Filler	±0.5%
	Bitumen	±0.25%
Finished Asphalt Temperature	130ºC-165ºC
Dust Collector	gravitational dust collector &Second baghouse dust collector
Air Emissions	≤20mg/Nm³
Dark exhaust standard	Ringelmann I
Working room noise	≤70db(A)
Environment noise	≤80db(A)
Operation	Full Auto/Manual Operation
Total Installation Power	≈470kW
Voltage	220V/380V-50Hz (adjustable)
Plant Covering Area	Length: 45m; width: 32m; max height point: 17m
