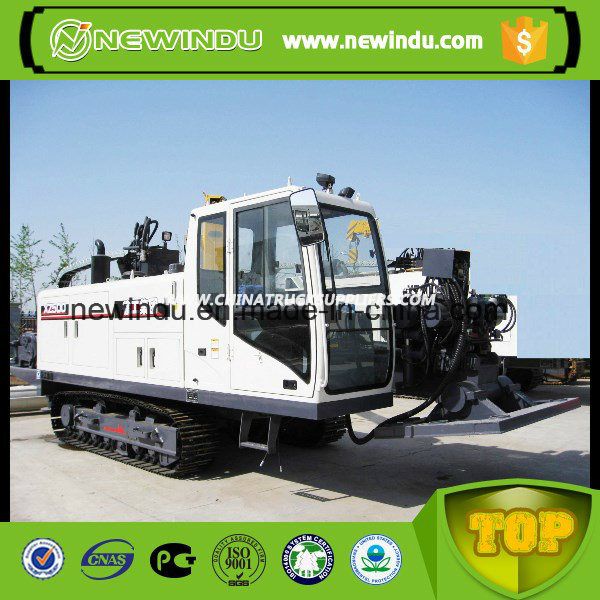

XCMG Brand Hot Sale Xz500 Drilling Rig Price

XCMG brand hot sale XZ500 drilling rig price

Feature

•Hydraulic system:Adopt many advanced control techniques, such as closed energy-efficient circuit, hydraulic pilot control, electrohydraulic proportion control, etc.
•Rotation:It is driven by both the motor and the reducer with two gears to control the speed.
• Feed/retract:Pull or push with the gear rack. There are two gears to control the speed, which has high working efficiency.
•Cab:The single cab with air conditioning makes the operation easy and comfortable.
•Engine:The turbocharging engine has large power reserve, guaranteeing the drilling power demand.
•Drill stand:The high-intensity drill stand is fit for the 4.5m drill rod. The drill stand can slide, which facilitates the angle adjustment.
•Drill rod holder:The movable holder and Truck Mounted Crane make the drill installment and dismantlement efficient and labor-saving.
•Track:The self-propelled steel tracks move and turn conveniently. It is driven by wire, and the speed can be shifted between high speed and low speed.
•Monitoring and protection:The engine, hydraulic pressure, filtration monitoring and alarming can effectively protect the machine safety.

Parameters

Model	XZ500
Engine	CUMMINS
Rated power	194kW
Push-pull	Rack and pinion
Max.pullback/thrusting	500/500kN
Spindle torque(max)	18000N.m
Spindle speed	0~108r/min
Travelling speed of power head	20m/min
Backreaming diameter	Φ1000mm
Pipe length(single)	4.5m
Pipe diameter	Φ89mm
Entry angle	10-20°
Mud flow ratw(max)	600L/min
Mud pressure(max)	100bar
Overall weight	18000kg
Dimension(LxWxH)	9300x2750x2930mm
