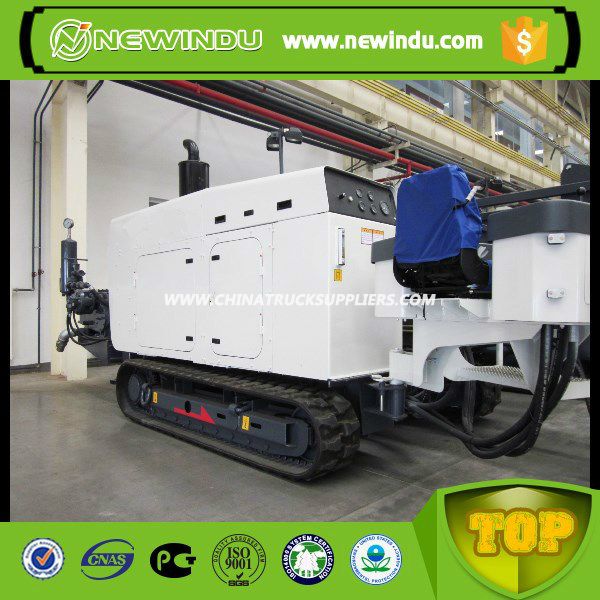

New Horizontal Directional Drill Machine Xz280 for Sale

New Horizontal directional drill machine XZ280 for sale

Feature
Double-speed power unit: run at low speed in drilling and back extraction to ensure smooth construction; receiving and unloading drill rod without load can slide at a double speed when moving back and forth, to reduce aid time and increase work efficiency.
Drill rod automatic handling: dill rod automatic handling device can increase work efficiency, reduce work strength and manual misoperation of the operators, reduce the number of construction staff and cut down construction cost.
Floating vice: the floating vice of exclusive technology of out company is used, extending the service life of drill rod effectively.
Rotatable operation desk: enlarge the field of the operators' view and relieve their fatigue.
Rubber belt track: with minimum impact on the pedestrian way, lawn and landscape.
Parameters

Item	Data
	Modle.	6BTAA5.9-C205
RotedPower	153kW(2000r/min)
Push-Pull	Type	Rack&Pinion
	Max.Pullback /thrusting	320/320kN
PowerHead	TravellingSpeedof PowerHead	21m/min
	Type	Double-speedpower
	SpindleTorque	8300N·m
	SpindleSpeed	120r/min
DrillPipe	Diameter	φ73mm
	Length(Single)	3m
	EntryAngle	10~20°
Walking	Type	Rubberbelttrack
	Speed	2.2km/h
Dimension	5920×2210×2400mm
OverallWeight	9T
