Product Description

New top sale Rotary Drilling Rig tool XR260D price

Feature

1) Single-row rope main windlass, effectively eliminating the rope abrasion and enhancing the service life of rope.

2) Infrared camera allowing the driver to observe the service condition of main windlass wire rope in the cab in the day and night.

3) More configurations available upon customer's demand(such as the put outrigger cylinder and auto slewing) to enable better expansibility.

4) Cummins electronic control turbo supercharged engine meeting Euro III emission standard, saving energy, environmental protection and strong power.

5) Limit power control and positive flow control enabling higher efficiency of hydraulic system and more energy saving.

6) Patented parallelogram derricking mechanism, allowing wide range work area; box structure drilling mast made of high strength material enabling higher strength and rigidity to effectively guarantee the drilling accuracy;

7) New structure rotary employing multi-stage shock absorption technique and dual seal structure, effectively enhancing the reliability; the removable driving sleeve pressure plate easy to repair;

8) Intelligent control system enabling the detecting device more accurate and reliable;

9) Optional 6 - section drill rod, allowing maximum drilling depth up to 80m.

10) Centralized lubricating system is optional, allowing easier maintenance.

Parameters

Engine	Engine Brand	CUMMINS
	Engine Type	QSL-325
	Rated Power	kW	242
Rotary Drive	Max output torque	kN . m	260
Rotary Drive	Rotary speed	r/min	7 ~ 22
Max Drilling Diameter		mm	2200
Max Drilling Depth		m	80
Pull-Down Cylinder	Max pull-down piston push	kN	200
	Max pull-down piston pull	kN	200
	Max pull-down piston stroke	m	5
Main Winch	Max Pulling force	kN	260
Main Winch	Max line speed	m/min	70
Auxiliary Winch	Max Pulling force	kN	80
Auxiliary Winch	Max line speed	m/min	60
Mast Rake	Side		± 40
	Forwards		± 50
	Backwards		± 150
Undercarrige	Max traveling speed	km/h	1.5
	Max grade ability	%	35
	Min Clearance	mm	449
	Track shoe width	mm	800
	Distance between tracks	mm	3250 ~4400
Hydraulic System	Working pressure	Mpa	35
Overall Drilling Weight		t	79
Dimension	Working condition	mm	10465 x 4400 x 22220
Dimension	Transportation condition	mm	16525 x 3250 x 3575

Contact

Mobile: +86-18356287971

New Top Sale Rotary Drilling Rig Tool Xr260d Price

Our company
We, Newindu E-Commerce (Shanghai) Co., Ltd, are professional in construction machinery for nearlly 10 years,exporting with good quality and low price, having excavator,truck crane,bulldozer,wheel loader,motor grader,drilling rig,Dump Truck,road roller,forklift,reach stacker,and also including the spare parts,etc.

Product Images

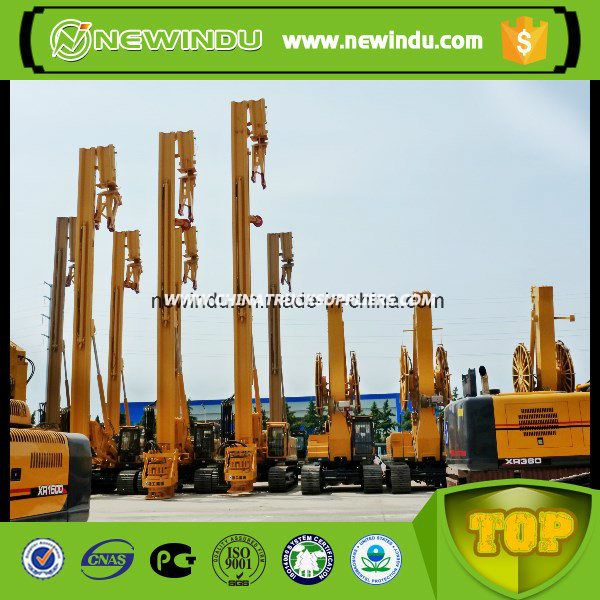

New Top Sale Rotary Drilling Rig Tool Xr260d Price Images 1
