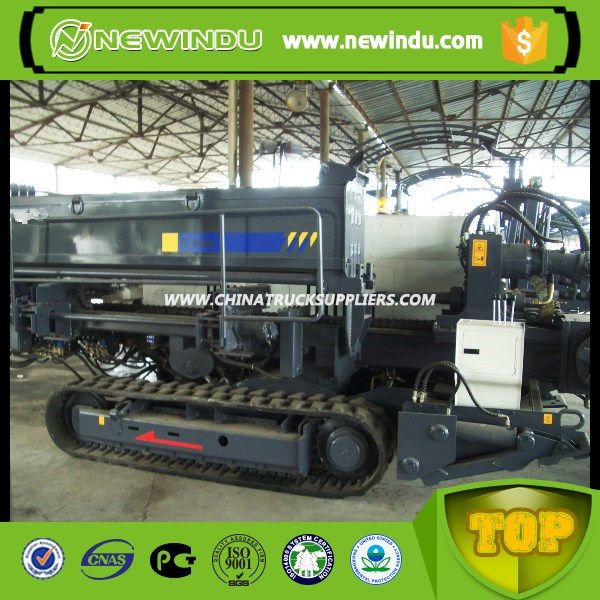

Xz320d Soil Drilling Rig Horizontal Directional Drill

XZ320D Soil Drilling Rig Horizontal Directional Drill

1.High-power engine system, strong power. It is adopted turbine engine which power is 153kW. The powerful engine is enough and insures there is enough power for drill in different working conditions.

2.Rack and pinion sliding, to ensure the stability of the carriage and the reliability of drive operational.

3.Carriage and clamp use double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.

4.High-speed sliding and rotation systems, variable motor to achieve high and low power head sliding change, increasing the ability to adapt the drilling rig working conditions, improve the efficiency of the drilling rig construction.

Description	unit	Specification
		XZ320D	XZ320E
Dimension(L*W*H)	mm	6500*2250*2450	6500*2250*2450
Overall Weight	t	11.5	10
Engine Model		6BTAA5.9-C205	6BTAA5.9-C205
Engine Power	kw	153/220	153/220
Max.Pullback/Thrusting	kN	320/320	345
Max.Spindle Torque	N.m	12000	12600
Spindle Speed	r/min	0-140	0-140
Sindle Traveling Speed	m/min	0-20	0-25
Max.Backeaming Diameter	mm	800	800
Pipe Length(single)	m	3	3
Pipe Diameter	mm	73	73
Max. Entry Angle	°	20	20
Max. Mud Flow Rate	L/min	320	320
Max.Mud Pressure	bar	80	80

bout Our Company
We are a professional trading firm, specializing in providing international markets with a variety of top Chinese construction machinery. We are the authorized dealer of XCMG. We have an annual sales volume of 50 million USD bussiness, containing 600-700 units construction machines. With a rich experience of many years, we have acquired the requisites expertise and excellence in our ddomain. Having scaled phenomental heights of success, today we stand tall amidst a number of competitors across the world. A well coordinated and expertly managed operation system and professional international sales team enable us to turn orders into final products and export them to approximately 60 countries and several regions across the globe.


FAQ:
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
