Hot Sale Rotary Drilling Rig Machinery Xr220d in Asia

FOB Price: Price can be negotiated
Min.Order: 1 Unit
Supply Ability: 91 Unit
Delivery time： 26 days

Product Description

Hot sale Rotary Drilling Rig Machinery XR220D in Asia

Feature

• Adopt single rope main winch, effectively solving the wear problem of the steel wire rope and improving its service life.
• Install the infrared camera, which can observe the service condition of the main winch steel wirerope in the cab day and night.
• Many configurations can be installed according to the customers' requirements (such as: landing leg cylinder, automatic slew).

• The hydraulic system adopts limiting power control and positive flow control, which improves the efficiency of the hydraulic system and saves more energy.
• The patent parallelogram variable structure realizes the large-scope working area. The mast is designed to be the box-type structure, which has high intensity and rigidity, effectively ensuring the drilling preciseness.
• It can be attached with 5 drill rods. The maximum drilling depth can reach 67.5m.

Parameters

Specification forXR220D Hydraulic strong power foundation construction crawler drilling rig
Engine	Engine Brand	CUMMINS
	Engine Type	QSL-325
	Rated Power	kW	242
Rotary Drive	Max output torque	kN . m	220
Rotary Drive	Rotary speed	r/min	7 ~ 22
Max Drilling Diameter		mm	2000
Max Drilling Depth		m	67, (special 80)
Pull-Down Cylinder	Max pull-down piston push	kN	200
	Max pull-down piston pull	kN	200
	Max pull-down piston stroke	m	5
Crowd Winch	Max pull-down piston push	kN	250
	Max pull-down piston pull	kN	250
	Max pull-down piston stroke	kN	15
Main Winch	Max Pulling force	kN	230
Main Winch	Max line speed	m/min	70
Auxiliary Winch	Max Pulling force	kN	80
Auxiliary Winch	Max line speed	m/min	60
Mast Rake	Side		± 40
	Forwards		± 50
	Backwards		± 150
Undercarrige	Max traveling speed	km/h	1.5
	Max grade ability	%	35
	Min Clearance	mm	446
	Track shoe width	mm	800
	Distance between tracks	mm	3250 ~ 4400
Hydraulic System	Working pressure	Mpa	35
Overall Drilling Weight		t	70
Dimension	Working condition	mm	10260 x 4400 x 22619
Dimension	Transportation condition	mm	16355 x 3250 x 3510

Contact

Mobile: +86-18356287971

Hot Sale Rotary Drilling Rig Machinery Xr220d in Asia

Our company
We, Newindu E-Commerce (Shanghai) Co., Ltd, are professional in construction machinery for nearlly 10 years,exporting with good quality and low price, having excavator,truck crane,bulldozer,wheel loader,motor grader,drilling rig,Dump Truck,road roller,forklift,reach stacker,and also including the spare parts,etc.

Product Images

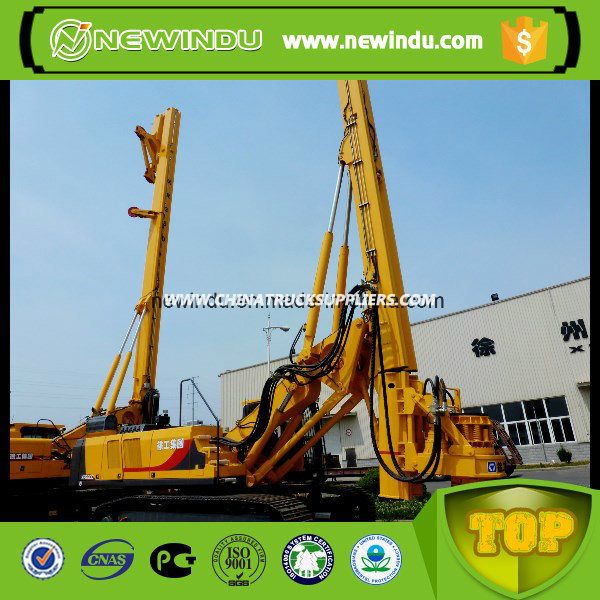

Hot Sale Rotary Drilling Rig Machinery Xr220d in Asia Images 1
