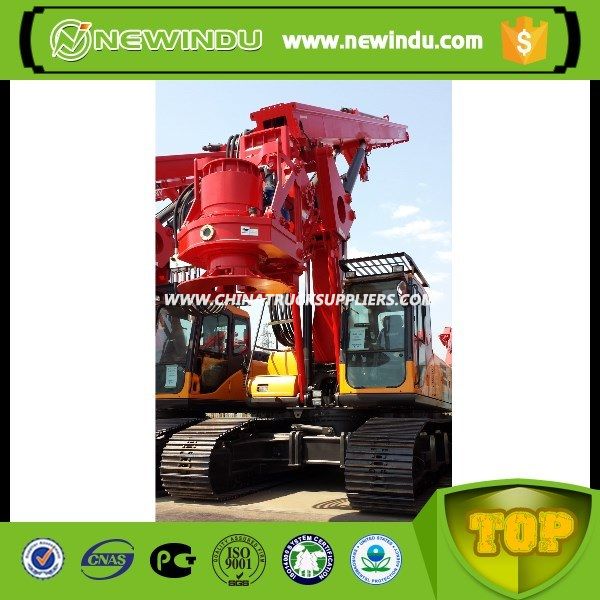

Sany Pile Rotary Drilling Rig Sr250 Pile Machinery

SANY Pile Rotary Drilling Rig SR250 Pile machinery

Benefits &Features

Classic model:
Powerful machine for civil engineering: Mainly used for pile foundation of medium and small-sized civil engineering.
High efficiency
The first chassis equipped with Kawasaki load control system, featured with high efficiency and energy saving.
Main winch confluence technology; the max. speed: 82m/min
The construction efficiency is increased by 10% compared with competitors.
Low fuel consumption
Engine output power intelligently matches the needs of system; fuel consumption is decreased by 5-10%.
High reliability
All the key components are jointly designed with world famous manufacturers and are customized. All these components have passed the rigorous testing, which ensures the stability and excellent performance of the machine.
Full-automatic production line and robot welding ensure high quality;
100% nondestructive test of key components which ensures high quality;
Short servicing time provides high profit.
Transport
With low transport weight, it can realize transport as awhole which facilitates assembly and disassembly.
Flexibility
Spacious cab; comfortable seat; flexible joysticks and intelligent control system

Specifications ofSANY Pile Rotary Drilling Rig SR250 Pile machinery

Overall height	22027 mm
Operating weight	74 ton
Max. pile diameter	2300 mm
Max. pile depth (friction bar)	69 m
Max. pile depth (interlocking bar)	54 m
Max. output torque	250 kN.m
Rotation speed	7~26rpm
Crowd force	208kN
Line pull	200 kN
Stroke	5300 mm
Line pull (first layer)	256kN
Rope diameter	32mm
Max. line speed	63m/min
Line pull (first layer)	110kN
Max. line speed	70m/min
Forward	5°
Lateral	±5°

-------------------
