Cheap Hot Sale Rotary Drilling Rig Equipment Xr150d

FOB Price: Price can be negotiated
Min.Order: 1 Unit
Supply Ability: 18 Unit
Delivery time： 22 days

Product Description

Cheap hot sale Rotary Drilling Rig equipment XR150D

Feature

XR series Rotary Drilling Rig is a suitable construction machinery for the construction of the hole, mainly suitable for sand, cohesive soil, silty soil and other soil construction.The drilling rigs generally use hydraulic crawler telescopic chassis, self-landing folding mast, telescopic drill pipe, with vertical degree of automatic detection adjustment and hole digital display, etc. Whole machine operation is generally used hydraulic pilot control and load sensing, easy operation and comfortable. The main and vice two winchs can meet construction site various requests.This type of drilling rig with different drilling tools for dry (short spiral) or wet (rotary bucket) and rock (core drill) into the hole operation,but also use with a long helix drill, underground wall grab, vibration pile hammer, etc. to achieve a variety of functions, mainly for municipal construction, highway bridges, industrial and civil construction, underground wall, water conservancy, anti-seepage slope and other basic construction.

Parameters

Engine	Engine Brand	CUMMINS
	Engine Type	6CTAA8.3-C185
	Rated Power	kW	138
Rotary Drive	Max output torque	kN . m	150
Rotary Drive	Rotary speed	r/min	8~30
Max Drilling Diameter		mm	1450
Max Drilling Depth		m	50
Pull-Down Cylinder	Max pull-down piston push	kN	114
	Max pull-down piston pull	kN	148
	Max pull-down piston stroke	m	3.5
Main Winch	Max Pulling force	kN	155
Main Winch	Max line speed	m/min	65
Auxiliary Winch	Max Pulling force	kN	60
Auxiliary Winch	Max line speed	m/min	70
Mast Rake	Side	0	± 30
	Forwards		± 50
	Backwards		± 150
Undercarrige	Max traveling speed	km/h	2.0
	Max grade ability	%	40
	Min Clearance	mm	352
	Track shoe width	mm	800
	Distance between tracks	mm	3050 ~ 4100
Hydraulic System	Working pressure	Mpa	32
Overall Drilling Weight		t	43.5
Dimension	Working condition	mm	7700 x 4100 x 18150
	Transportation condition	mm	13700x3050x3520 (with pipe)
	Transportation condition	mm	12800 x3050 x 3240

Contact

Mobile: +86-18356287971

Cheap Hot Sale Rotary Drilling Rig Equipment Xr150d

Our company
We, Newindu E-Commerce (Shanghai) Co., Ltd, are professional in construction machinery for nearlly 10 years,exporting with good quality and low price, having excavator,truck crane,bulldozer,wheel loader,motor grader,drilling rig,Dump Truck,road roller,forklift,reach stacker,and also including the spare parts,etc.

Product Images

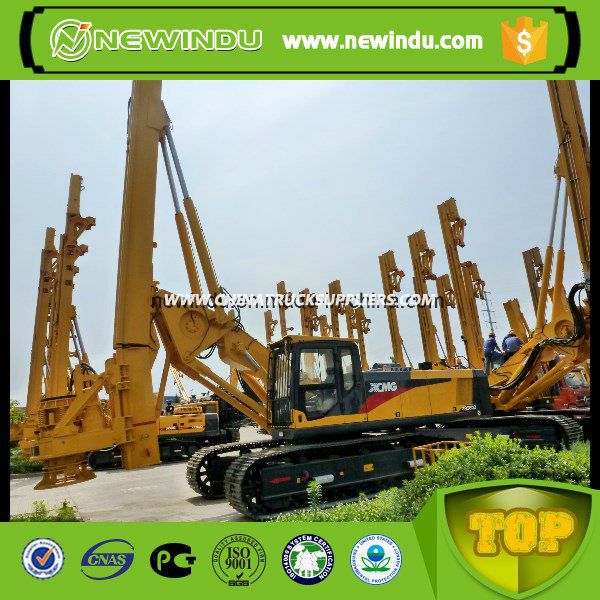

Cheap Hot Sale Rotary Drilling Rig Equipment Xr150d Images 1
