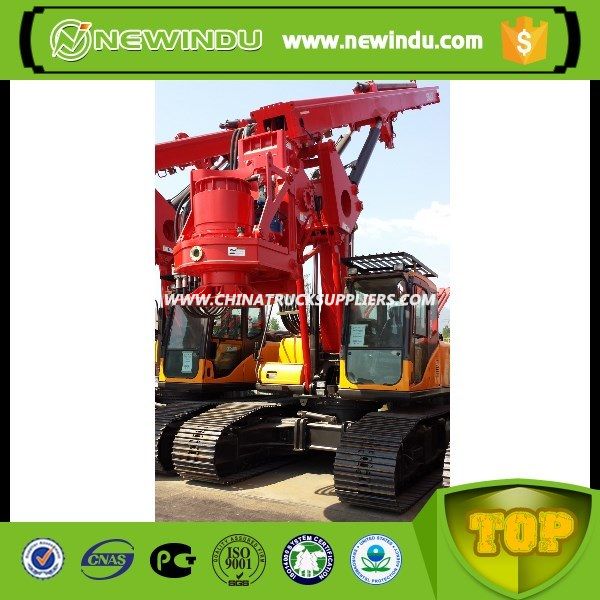

Sr365RC10 Sany Rotary Drilling Rig for Sale 365kn. M Torque

SR365RC10 rotary drilling rig is suitable for hard rock drilling features with winch or cylinder crowd systems and various casing adaptive.

High drilling capacity

14-19m friction Kelly, 13-19m interlocking Kelly made of high strength steel tubes are available; Maximum output torque reaches 365kN.m, the maximum pile depth is 106m down, maximum pile diameter under winch crowd is 2500mm, 2700mm under cylinder crowd.

Isuzu engine with rated power of 300kW@1800rpm provides strong power to the machine, improving the drilling capacity.

Main winch with dual reducer and dual motor delivers faster line speed of 75m/min, bigger lifting power with 410kN line pull, single layer rolling is optional.

Safe and reliable

The 5th generation rotary drive adopts multi-gear control, self-adaptive techniques, and double buffering system which can increase drilling efficiency and safety.

Anti-shock heavy duty hydraulic system tailor-made with renowned brands and heavy extended chassis with low gravity ensure efficient, safe and stable operation.

Advanced welding robots, CNC automatic cutting machines ensure high precision and quality of the core components.

Easy to operate &maintain

Auto center lubrication system is equipped to facilitate the secure and efficient lubrication of the drilling rig.

Optimized layout, larger spaces for pumps and valves is for easy maintenance during work.

Spacious cab with panorama sunroof, SANY-ADMS intelligent operation system designed to give the operator a comfortable environment and wide visibility.
