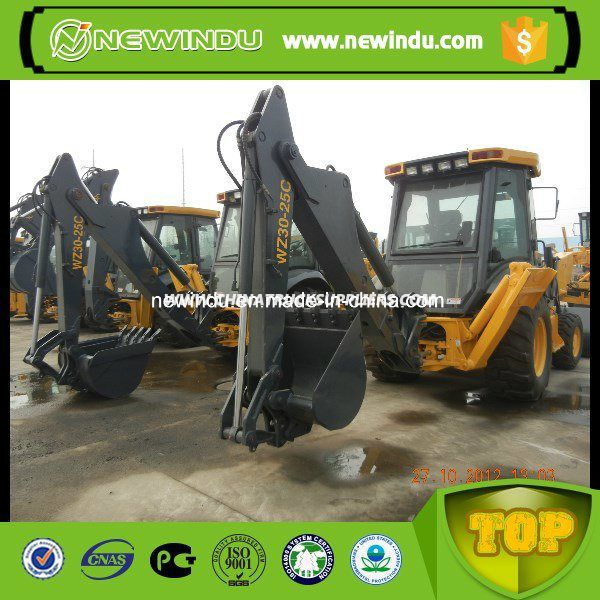

Mini Wheel Loader Backhoe Loader Wz30-25 Sales

Mini wheel loader Backhoe Loader Wz30-25 sales

1. Rated load: 1700kg
2. Bucket capacity: 1.0m3
3. Engine: Cummins 4BT4.5-C99(74kw)

Features of Backhoe Loader WZ30-25:
1. Equipped with reliable genuine Cummins engine
2.4 forward & 4 reverse synchromesh mechanical shift transmission
3. Combined seal cylinder obtains high seal performance and more reliability
4. Improved loader and backhoe performance
5. CARRARO wet type rear axle with multi-disc brake& CARRARO front axle
6. New-type cab with more space, increases comfort and visibility
7. With 2 wheel driving or 4 wheel driving for option

Technical Paramters

OverallDimension
1	Length(withbucketonground)	7085(mm)
2	Width	2313(mm)
3	LoadBucketwidth	2313(mm)
4	Height(Tothetopofthecab)	2710(mm)
5	Height(Tothetopofthediggingpole)	3424(mm)
6	Wheelbase	2155.5(mm)
7	BackwheelTread	1700(mm)
8	ForewheelTread	1880(mm)
9	Min.groundclearance	355(mm)for2WD275(mm)for4WD
MainLoadingTechnicalSpecification
1	Ratedload	1700(Kg)
2	Operatingweight	7600KG
3	Maxliftingcapability	>2500KG
4	Ratedloadbucketcapacity	1.0(m3)
5	Max.loadbreakoutforce	>60kN
6	Max.dumpclearance	2714(mm)
7	Max.Dumpreach	845(mm)
8	Dumpangleatanyposition	≥43.5°
9	Min.turningradius
	(1)Outsideofbucket	5280(mm)for2WD5670(mm)for4WD
	(2)Centeroffrontwheel	3795(mm)for2WD4380(mm)for4WD
10	Liftingtimeofloadingbucket	≤4.5(sec.)
11	Loweringtimeofloadingbucket	≤7.5(sec.)
12	Dumpingtime	≤1.5(sec.)
13	Travelingspeed(Km/h),4forwardand4reverse
	(1)Igearforward	6
	(2)IIgearforward	9.6
	(3)IIIgearforward	20.5
	(4)IVgearforward	38
	(1)Igearreverse	6
	(2)IIgearreverse	9.6
	(3)IIIgearreverse	20.5
	(4)IVgearreverse	38
MainDiggingTechnicalSpecification
1	Rateddiggingbucketcapacity	0.3(m3)
2	Max.diggingdepth	4405(mm)
3	Max.diggingforce	>50±10%kN
4	Max.diggingradius	5481(mm)
5	Max.dumpingheight	3737(mm)
Dieselengine
1	Model	WDDEUTZWP4G95E221
2	Type	Directinjection.Turbocharged.Watercooling
3	Ratedoutput	70(kW)
4	Totalexhaustofcylinder	4.5(L)
5	Inter-boreofcylinder/stroke	102/130(mm)
6	Voltageofstartingmotor	12(V)
7	Ratedspeed	2200(r/min)
8	Max.Torque	380(N.M)
9	Startingtype	Electric
10	Min.specificfuelconsumption	216(g/Kw.h)
TransmissionSystem
1.TorqueConverter
1	Model	CARRARO
2	Coolingtype	Pressureoilcirculating
2.Transmissioncase
1	Model	CARRARO
2	Type	Synchromeshmechanicalshift
3	Gearshiftposit	4Forwardand4reversegears
3.AxleandTire
1	Model	CARRARO
2	Typeofmainreducer	spiralbevelgear,singlestage
3	Typeoffinalreducer	Singlestageplanetary
4	Max.steeringangle	55°
5	Tiretype	4WDforetire12-16.5NHS-10PR
		2WDforetire11L-16F3-12PR
		Reartire19.5L-24R4-12PR
WorkingDeviceHydraulicSystem
1	Modelofoilpump	JHP2063C
2	Systempressure	210(kgf/cm2)
3	Modelofloadvalve	ZL20.3S4C-00
4	Modelofexcavatevalve	WJ20.7SC3-00
SteeringSystem
1	Type	ForewheelSteering
2	Modelofsteeringpump	JHP2063C
3	ModelofRedirector	BZZ5-E160B+FKB-3022
4	Systempressure	140(kgf/cm2)
OilCapacity
1	Fuel(diesel)	151(L)
2	Enginelubricatingoil	11(L)
3	Oilforconverterandgearbox	For2WD	18.5(L)
		For4WD	21(L)
4	Oilforhydraulicsystem	110(L)
5	Oilfordrivingaxles(F/R)	7.6+17(L)

---------------
