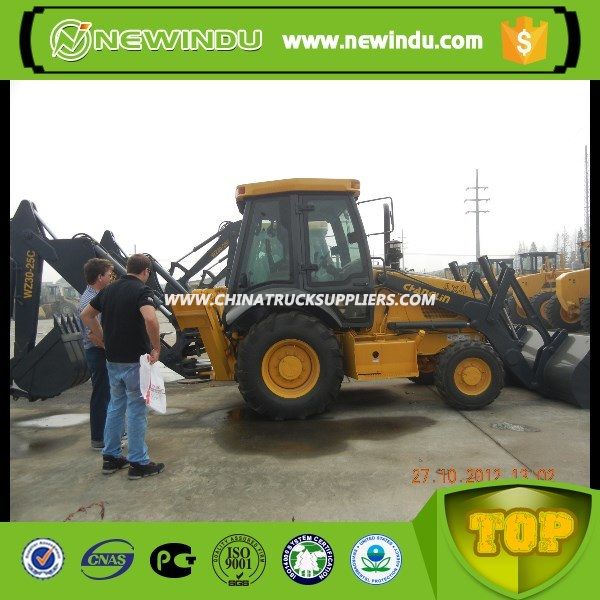

Hot Famous Changlin 0.2m3 Backhoe Loader 620CH in China

Hot famous changlin 0.2m3 Backhoe loader 620CH in china

Feature

1)Toadoptthegearbox,torqueconvertertoprovideasupperpower,walkingsteadilyandhigherreliability

2)TocombinedExcavatorandloaderasonemachine,fullyequippedwithallfunctionofminiexcavatorandloader,moresuitableforoperatinginanarrowspace,convenientandflexible,reducingthewholepurchasecoatandrunningcost.

3)Excavationandloadingfunctionareallpilotcontrol,lightandflexible,highefficiency.

4)Humanizeddesigned360degreeswivelseat,allstalinitecab,morebroadvisionand comfortabledriving.

5)Excavationslideslipdevicemaketheexcavationoperationsbroaderandmoreefficient.

6)Formunicipal,building,waterconservancy,road,water,electricity,gardenandotherdepartments,engagedinagriculturalconstruction,pipelaying,cablelaying,landscapingandotherjobs.

Parameters

SPECIFICATIONS FOR 620CH BACKHOE LOADERS
Overall Dimension	Overall length	with bucket on ground	5835(mm)
	Overall width	at stabilizer	2240(mm)
	Width	to outside tyre	2200(mm)
	Height	To the top of the digging pole	3548 (mm)
	Wheel base	mm	2155.5
	Back/Fore wheel Tread	mm	1700/1800
	Max Traveling speed	Km/h	38
Main Loading Technical Specification	Rated load	Kg	1700
	Operating weight	Kg	8000
	Max Lifting capability	KN	>34
	Capacity of load bucket	m3	1.0
	Max. dump clearance/reach	mm	2714/875
Main Digging Technical Specification	Rated digging bucket capacity	(m3)	0.2
	Max. digging depth/radius/height	mm	4365/5390/3510
	Max. digging force	kN	>56.6+10%
Diesel engine	Model	Cummins 4BTA3.9-C110
	Type	Direct injection. Turbocharged. Water cooling
	Rated output	HP/rpm	110/2200
	Max. Torque	460N.m@1500RPM
Transmission System	Cooling typeTorque Converter	Pressure oil circulating
	Type Transmission	Synchromesh mechanical shift
