China Mini Backhoe Loader Changlin 630A Loader

FOB Price: USD 38000.42 /Unit
Min.Order: 1 Unit
Supply Ability: 29 Unit
Delivery time： 7 days

Product Description

Overall Dimension
1	Length(with bucket on ground)			7085(mm)
2	Width			2313(mm)
3	Load Bucket width			2313(mm)
4	Height(To the top of the cab)			2710 (mm)
5	Height(To the top of the digging pole)			3424 (mm)
6	Wheelbase			2155.5(mm)
7	Back wheel Tread			1700(mm)
8	Fore wheel Tread			1880(mm)
9	Min. ground clearance			355(mm) for 2WD 275(mm) for 4WD
Main Loading Technical Specification
1	Rated load			1700(Kg)
2	Operating weight			7600KG
3	Max lifting capability			>2500KG
4	Rated load bucket capacity			1.0(m3)
5	Max. load breakout force			>60kN
6	Max. dump clearance			2714(mm)
7	Max. Dump reach			845(mm)
8	Dump angle at any position			≥43.50
9	Min. turning radius
	(1) Outside of bucket			5280(mm) for 2WD 5670(mm) for 4WD
	(2) Center of front wheel			3795 (mm) for 2WD 4380(mm) for 4WD
10	Lifting time of loading bucket			≤4.5(sec.)
11	Lowering time of loading bucket			≤3.5sec.)
12	Dumping time			≤1.5(sec.)
13	Traveling speed(Km/h),4 forward and 4 reverse
Main Digging Technical Specification
1	Rated digging bucket capacity			0.3(m3)
				standard boom	telescopic boom
2	Max. digging depth			4405	4490/5550
3	Max. digging radius			5481	5625/6675
4	Max. dumping height			3737	3930/4930
5	Max. digging force			>50+10%kN
Diesel engine
1	Model		WD DEUTZ WP4G95E221
2	Type		Direct injection. Turbocharged. Water cooling
3	Rated output	70 (kW)

---------------
Amanda
Mobile /: +8618721040484
https://www.facebook.com/amanda.huang.44
amanda[at]newindu[dot]com
Http://www.evangelchina.com/
Newindu E-Commerce(Shanghai) Co., Ltd&Evangelchina Construction Machinery Solutions
Address: Suite 1305, Fortune Times Tower, No. 1438 North Shanxi Road

Product Images

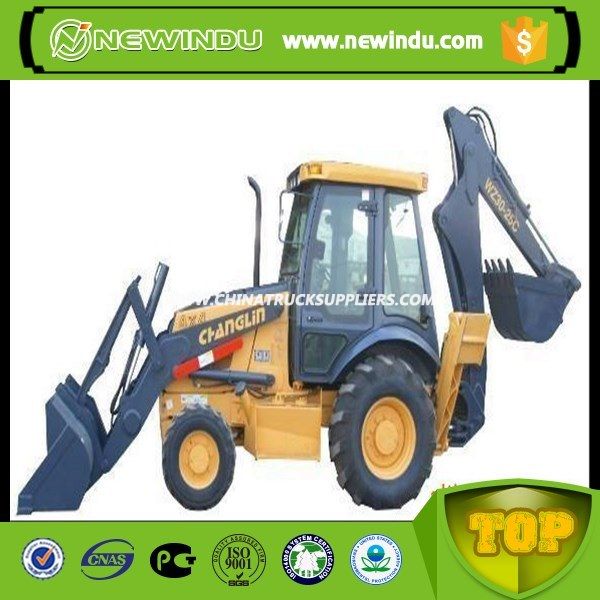

China Mini Backhoe Loader Changlin 630A Loader Images 1
