Chinese Brand Sany Concrete Stationary Pumps

Product Description

Chinese Brand SANY Concrete Stationary Pumps

Model	SYG5418THB56
Dimension	Length	13850mm
	Width	2500 mm
	Height	4000 mm
	Empty Height	42500kg
Boom&Outrigger	Vertical reach	56m
	Horizontal reach	51m
	Reach depth	36.6m
	Untolding reach	15.2m
	1st section-Length	11390mm
	1st section-Articulation	90°
	2nd section-Length	9230mm
	2nd section-Articulation	180°
	3rd section-Length	8750mm
	3rd section-Articulation	180°
	4th section-Length	11070m
	4th section-Articulation	240°
	5th section-Length	8080m
	5th section-Articualtion	210°
	6th section-Length	3350mm
	6th section-Articualtion	110°
	Rotation	±360°
	Outrigger spread L-R Front	9470mm
	Outrigger spread L-R-Rear	12680mm
Pumping System	Output(Low/High-pressure)	180/125m3/h
	Pressure(Low/High-pressure)	8.3/12 Mpa
	Max.stroke per minute(Low/High-pressure)	29/19 times/min
	Delivery cylinder diameter	260mm
	Stroke Length	2100mm
	Hydraulic system	Open
	Hydraulic system pressure	32Mpa
	Hydraulic tank capacity	680L
	Water tank capacity	620L
	Pipe size	125mm
	End hose length	3m
	End hose diameter	125mm
Chassis	Engine power	300/1800 kw/ rpm
	Fuel tank capacity	400L
	Displacement	11.946L
	Max.speed	80km/h
	Brake distance	≤10/30m km/h

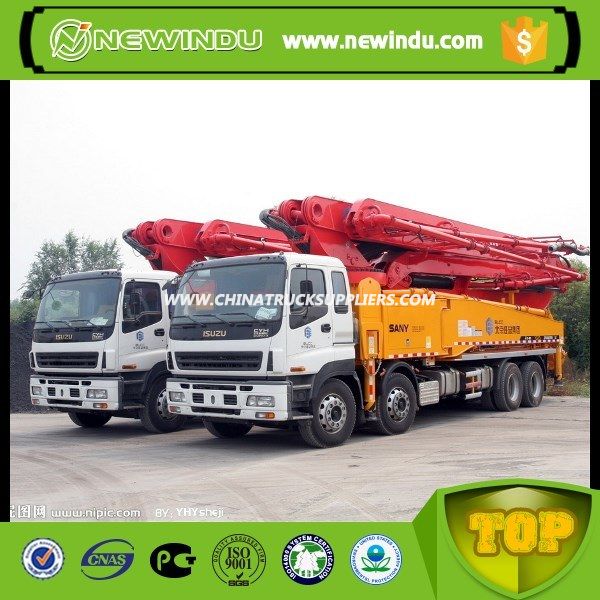

Product Images
