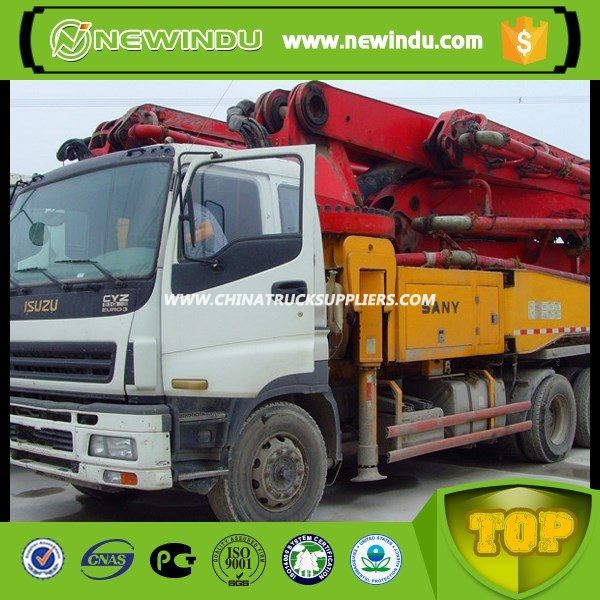

62 M Mini Truck Mounted Concrete Pump for Sale

62 m Mini Truck Mounted Concrete Pump for Sale
One button stabilization technologyBoom anti-vibration technologyEnergy-saving technologyAnti-swing control technologyHigh wear-resisting partsFault self-diagnosis technologySmart boom systemSecurity technology

Model	SYG5530THB62
Dimension	Length	15730 mm
	Width	2500 mm
	Height	4000 mm
	Empty Height	53000kg
Boom&Outrigger	Vertical reach	62m
	Horizontal reach	57.6m
	Reach depth	42m
	Untolding reach	16.2m
	1st section-Length	12140mm
	1st section-Articulation	90°
	2nd section-Length	10090m
	2nd section-Articulation	180°
	3rd section-Length	9570mm
	3rd section-Articulation	180°
	4th section-Length	12280m
	4th section-Articulation	230°
	5th section-Length	7945m
	5th section-Articualtion	200°
	6th section-Length	5100mm
	6th section-Articualtion	100°
	Rotation	±270°
	Outrigger spread L-R Front	11420mm
	Outrigger spread L-R-Rear	13880mm
Pumping System	Output(Low/High-pressure)	180/125m3/h
	Pressure(Low/High-pressure)	8.3/12 Mpa
	Max.stroke per minute(Low/High-pressure)	29/19 times/min
	Delivery cylinder diameter	260mm
	Stroke Length	2100mm
	Hydraulic system	Open
	Hydraulic system pressure	32Mpa
	Hydraulic tank capacity	650L
	Water tank capacity	700L
	Pipe size	125mm
	End hose length	3m
	End hose diameter	125mm
Chassis	Engine power	300/1800 kw/ rpm
	Fuel tank capacity	400L
	Displacement	11.946L
	Max.speed	80km/h
	Brake distance	≤10/30m km/h
