Used Hydraulic Syg5271thb38 Concrete Pump From Sany

Product Description

Used Hydraulic SYG5271THB38 Concrete Pump from SANY

Model	SYG5271THB38
Dimension	Length	11380/11420 mm
	Width	2500 mm
	Height	3990/4000 mm
	Empty Height	27800kg
Boom&Outrigger	Vertical reach	38m
	Horizontal reach	34m
	Reach depth	21.5m
	Untolding reach	11.3m
	1st section-Length	8510mm
	1st section-Articulation	89°
	2nd section-Length	7260mm
	2nd section-Articulation	180°
	3rd section-Length	6000mm
	3rd section-Articulation	240°
	4th section-Length	6100mm
	4th section-Articulation	180°
	5th section-Length	6100mm
	5th section-Articualtion	265°
	Rotation	±360°
	Outrigger spread L-R Front	6200mm
	Outrigger spread L-R-Rear	7130mm
Pumping System	Output(Low/High-pressure)	140/100 m3/h
	Pressure(Low/High-pressure)	8.3/12 Mpa
	Max.stroke per minute(Low/High-pressure)	23.5/16.5 times/min
	Delivery cylinder diameter	260mm
	Stroke Length	1900mm
	Hydraulic system	Open
	Hydraulic system pressure	32Mpa
	Hydraulic tank capacity	640L
	Water tank capacity	600L
	Pipe size	125mm
	End hose length	3m
	End hose diameter	125mm
Chassis	Engine model	OM501LA/17/6WG1G
	Engine power	300/294 kw/1800 rpm
	Fuel tank capacity	400L
	Displacement	11.946/15.68L
	Max.speed	80km/h
	Brake distance	≤10/30m km/h

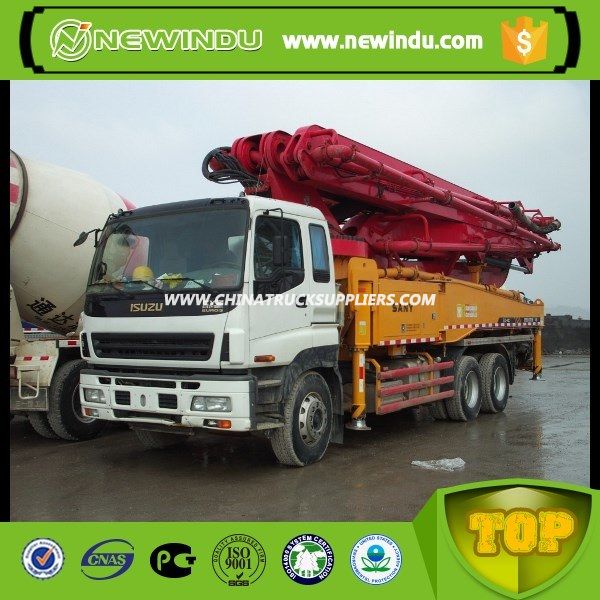

Product Images
