Concrete Pump Truck with SANY Concrete Pump Spare Parts

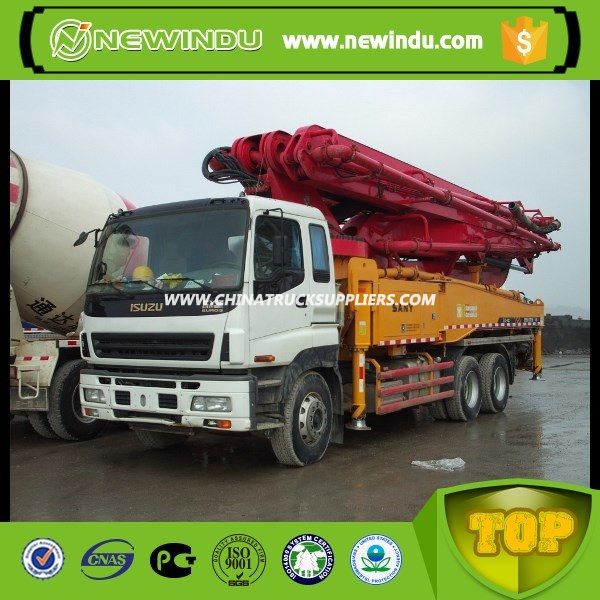

Sany SYG5530THB 47 truck-mounted concrete pump has 47m vertical reach with the height limit programmed to prevent boom contact with an obstruction or overhead hazard. The 47m concrete pump provides the users reliable pumping performance along with the highly wear resistant parts including delivery pipe, discharge port, transition bushing, concrete piston, wear plate, cutting ring and delivery cylinder that improve the pumping efficiency and reduce down time.

Model	SYG5360THB47
Dimension	Length	12500mm
	Width	2500 mm
	Height	4000 mm
	Empty Height	36400kg
Boom&Outrigger	Vertical reach	47m
	Horizontal reach	42m
	Reach depth	29.4m
	Untolding reach	13.9m
	1st section-Length	9760mm
	1st section-Articulation	89°
	2nd section-Length	7670mm
	2nd section-Articulation	180°
	3rd section-Length	7410mm
	3rd section-Articulation	180°
	4th section-Length	9670mm
	4th section-Articulation	235°
	5th section-Length	8545m
	5th section-Articualtion	215°
	Rotation	±360°
	Outrigger spread L-R Front	9300mm
	Outrigger spread L-R-Rear	9620mm
Pumping System	Output(Low/High-pressure)	170/120 m3/h
	Pressure(Low/High-pressure)	8.3/12 Mpa
	Max.stroke per minute(Low/High-pressure)	29/19 times/min
	Delivery cylinder diameter	260mm
	Stroke Length	1900mm
	Hydraulic system	Open
	Hydraulic system pressure	32Mpa
	Hydraulic tank capacity	680L
	Water tank capacity	620L
	Pipe size	125mm
	End hose length	3m
	End hose diameter	125mm
Chassis	Engine power	300/1800 kw/ rpm
	Fuel tank capacity	400L
	Displacement	11.946L
	Max.speed	80km/h
	Brake distance	≤10/30m km/h
