Zoomlion 38m Truck Mounted Pump

FOB Price: USD 180000.00 /Unit
Min.Order: 1 Unit
Supply Ability: 91 Unit
Delivery time： 8 days

Product Description

ZOOMLION brand 38m Truck Mounted Pumps38X-5RZ

• Compact in design, 38m pump mounted on a 3-axle truck.
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 5 arms with unfolding height 9.61m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components.
• Damping technology boom.
• Boom stabilization control.
• Multilingual man-machine interface system.
• PWM+CAN dual communication mode remote control.

Model	Unit	38X-5RZ
Pump Unit	Max. Theor. output	m3/h	140/90
	Max. Theor. concrete output Pressure	MPa	7/11
	Rated working pressure	MPa	35
	Pumping frequency	min-1	27/17
	Hopper capacity	L	550
	Filling height	mm	1540
	Hydraulic system type		opened loop
	Distribution valve		S valve
	Oil cylinder dia.×stroke	mm	φ130×2100
	Concrete cylinder dia.×stroke	mm	φ230×2100
	Hydraulic oil cooling		Wind cooling
	Recommended concrete slump	cm	12~23
	Max. aggregate dimension	mm	40
Boom Section	Structure type		38X-5RZ
	Placing depth	m	38
	Max. horizontal distance	m	34
	Max. placing depth	m	24.9
	Slewing angle		±270°
	Boom number		5
	The length of boom section	mm	8890/8100/8105/5405/3500
	Sections folding angle		90°/180°/180°/250°/90°
	Pipe diameter	mm	125
	End hose length	mm	3000
	Min. height of opening placing boom	mm	9610
	Outriggers span (front×rear×side)	mm	6190×8345×7045
Upper Structure	Upper Structure Mass	kg	15260
Upper Structure	Dimensions(L×W×H)	mm	9845×2500×3596

Product Images

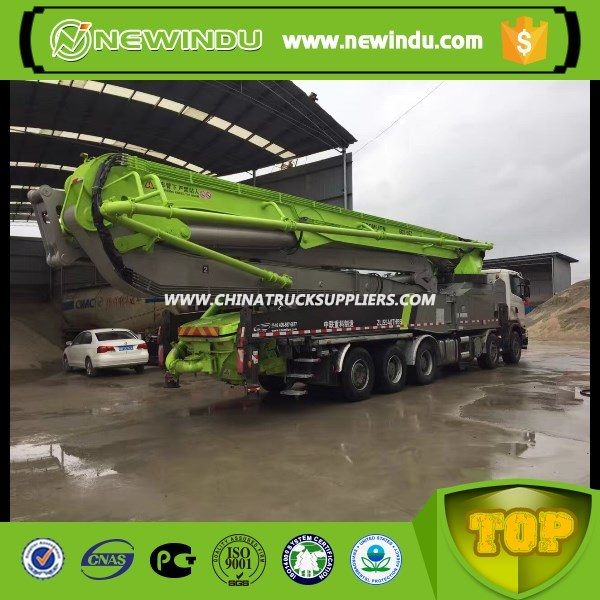

Zoomlion 38m Truck Mounted Pump Images 1
