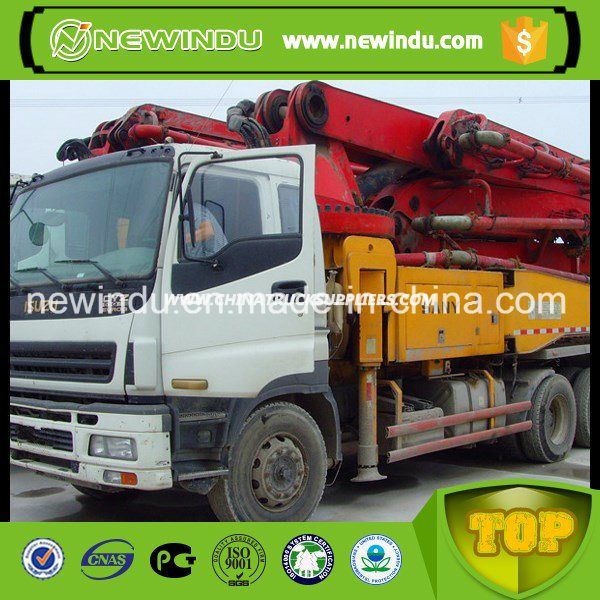

Top Brand Concrete Mixer with Pump Truck Machine Syg5360thb 47

Top Brand Concrete Mixer with Pump Truck Machine SYG5360THB 47

Feature

One Button Stabilization Technology

The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose.

Boom Anti Vibration Technology

The boom anti vibration technology reduces vibration during pumping by 50% allowing less movement and greater control of the end hose.

Energy Saving Technology

With cycle times of up to 29 per minute (at 12MPa), pump efficiency is increased up to 25% while fuel consumption is decreased by up to 10%.

Anti Overswing Technology

By adopting our new swing brake technology, the boom's overswing amplitude is reduced by 60%

Fault Self Diagnostic Technology

Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.

Smart Boom System

One Button Boom Extend/Retract

Press upward on the boom extend/retract button to extend the boom or press downward to retract the boom automatically.

Coordinated Section Operation

The boom can be rapidly and accurately repositioned by coordinating the movement the first and second sections

Safety Technology

Parameters
Length
12500 mm
Width
2500 mm
Height
4000 mm
Empty weight
36400 kg
Boom & Outrigger
Vertical reach
47 m
Horizontal reach
42 m
Reach depth
29.4 m
Unfolding reach
13.9 m
1st section-Length
9760 mm
1st section-Articulation
89°
2nd section-Length
7670 mm
2nd section-Articulation
180°
3rd section-Length
7410 mm
3rd section-Articulation
180°
4th section-Length
9670 mm
4th section-Articulation
235°
5th section-Length
8545 mm
5th section-Articulation
215°
Rotation
±360°
Outrigger spread L-R-Front
9300 mm
Outrigger spread L-R-Rear
9620 mm
Pumping System
Output (Low/High-pressure)
170/120 m³/h
Pressure (Low/High-pressure)
8.3/12 Mpa
Max. strokes per minute (Low/High-pressure)
29/19 times/min
Delivery cylinder diameter
260 mm
Stroke length
1900 mm
Hydraulic system
Open
Hydraulic system pressure
32 Mpa
Hydraulic tank capacity
680 L
Water tank capacity
620 L
Pipe size
125 mm
End hose length
3 m
End hose diameter
125 mm
Engine model
OM501LA./3
Engine power
300/1800 kW/rpm
Emissions
Tier / Tier III
Fuel tank capacity
400 L
Displacement
11.946 L
Max.speed
80 km/h
Brake distance
≤10/30 m/km/h
