Small 40m Concrete Pump Truck Construction Equipment

small 40m concrete pump truck construction equipment

Contact way:
Sales Manager
Alisa Wang

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109Fax: +86-21-62120109
Mobile :+86-18616224775

Product description:
small 40m concrete pump truck construction equipment

Travel
Category	Item	Unit	Parameter
Chassis	Model		FM
	Manufacturer		VOLVO
	Max. speed	km/h	90.8
	Max. gradeability		34.70%
	Min. turning diameter	m	18.4
	Brake distance	m	≤7
	Wheelbase	mm	4900+1370
	Tread (front/rear)	mm	2019/1834
	Approach angle/departure angle	.	18/10
	Min. clearance	mm	270
	Tyre specification		12.00R20
Engine	Model		D13
	Output power	kw/(r/min)	294/1400-1800
	Max. torque	N.m/(r/min)	2000/1050-1400
	Displacement	l	12.8
	Emission Standard		Nation III GB
Others	Dimension (Length×Width×Height)	mm	11180×2500×3990
	Total vehicle weight	kg	32600
	Fuel tank capacity	l	410
	Fuel consumption per 100km	l/100km	40
Pumping operation
Pumping system	Theoretical output(high pressure/low pressure)	m3/h	70/140
	Concrete pumping pressure(high pressure/low pressure)	Mpa	11.8/6.38
	Theoretical pumping times(high pressure/low pressure)	/min	15/27
	Max. diameter of pumping concrete aggregate		40
	Feeding height		1450
Placing boom	Pumping slump range		12-23
	Reach height		39.8
	Reach depth		27.9
	Slewing radius		35.8
	Slewing angle		370
	1st boom stretch angle		90
	2nd boom stretch angle		180
	3rd boom stretch angle		180
	4th boom stretch angle		240
	5th boom stretch angle		250
	Outrigger span	Overall outrigger span	7800
		Front outrigger transverse span	8350
		Rear outrigger transverse span	7200
Others	Dosing type		S valve
	Lubricating method		Automatic lubrication
	Controlling method		Manual/remote control
	Water tank capacity		600
	Max. pressure of water pump		2

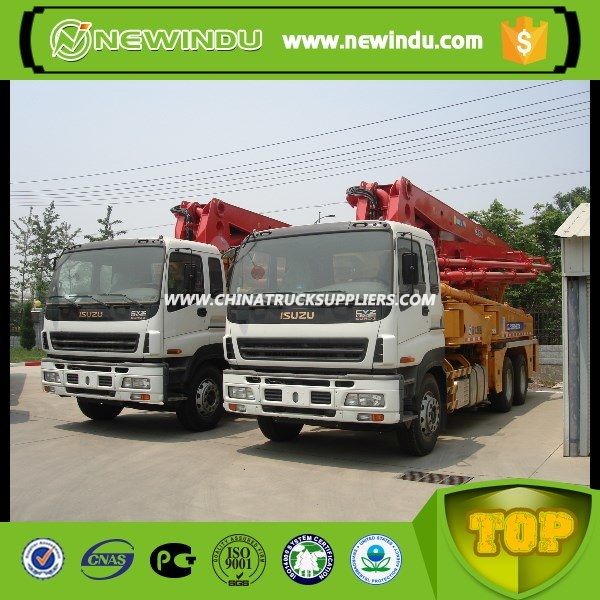

Product image:
