37m Construction Machine Mobile Concrete Pump Hb37A

37m construction machine mobile concrete pumpHB37A

Contact way:
Sales Manager
Alisa Wang

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109Fax: +86-21-62120109
Mobile :+86-18616224775

Product description:
37m construction machine mobile concrete pumpHB37A

No.	Item	Unit	Parameter
1	Max. speed	km	90
2	Min. turning diameter	m	18.4
3	Brake distance	m	7
4	Approach angle	°	31
5	Departure angle	°	12
6	Chassis model		CXZ51Q ( Japan )
7	Total weight	kg	28150
8	1st axle load	kg	6780
9	2nd, 3rd axle load	kg	21220
10	Engine model		6WF1
11	Max. Engine power	kW	287
12	Max. Engine torque	N.m	1862
13	Max. grade-ability	%	38
14	Fuel consumption limit	L/100km	34
15	Outline dimensions (Length´ Width ´Height)	mm	11990´2490´3900

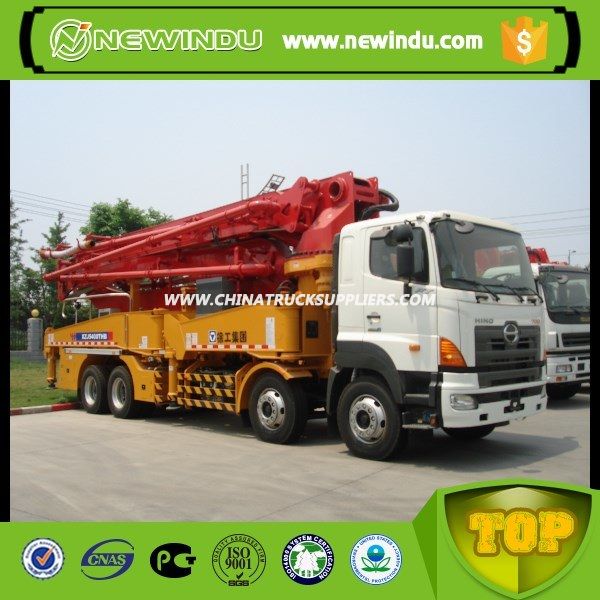

Product image:
