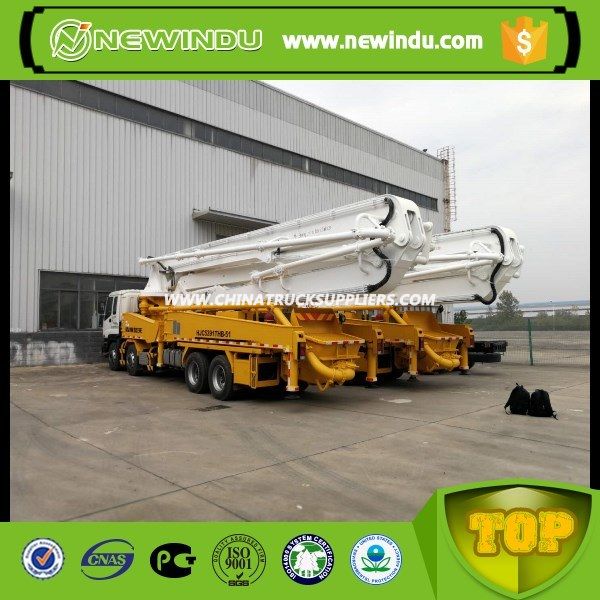

Shantui 49m Concrete Boom Pump Truck

Shantui 49m Boom Pump Truck

Chassis model:Germany/ Japan brand

Number of axles: 4

Boom height:49m

Performance Parameters

Model			Unit	HJC5420THB-49	HJC5421THB-49
Vehicle specification	Length × width × height		mm	13810×2500×4000	13850x2500X4000
	Gross weight of machine		Kg	43000	42400
Boom parameters	Folding type			5-section RZ-shaped
	Rotation angle for boom sections		°	90/180/80/250/180
	Vertical height of boom		m	49/50.8
	Horizontal length of boom		m	45/46.8
	Vertical height of boom		m	34/36
	Minimum unfolding height of boom		m	10.3
	Rotation angle of turntable			±360°
Outrigger parameters	Extending/retracting mode of outriggers			X-shaped outriggers
	Maximum extending span of front outriggers		m	9.51
	Maximum extending span of rear outriggers		m	12.8
Pumping system parameters	Theoretical concrete displacement	High pressure	m3/h	120
		Low pressure	m3/h	170
	Theoretical pumping pressure	High pressure	Mpa	12
		Low pressure	Mpa	8.3
	Bore diameter of delivery cylinder		mm	260
	Travel of delivery cylinder		mm	2200
	Hopper capacity		L	800
	System oil pressure		Mpa	32
Other	Remote controller			German HBC
	Cooling mode of hydraulic oil			Air cooling
Chassis	Chassis model			ACTROS4141/8×4	CYH52Y
	Engine power			300kw/1800rpm	294kw/1800rpm
	Emission standard			Euro-IV
