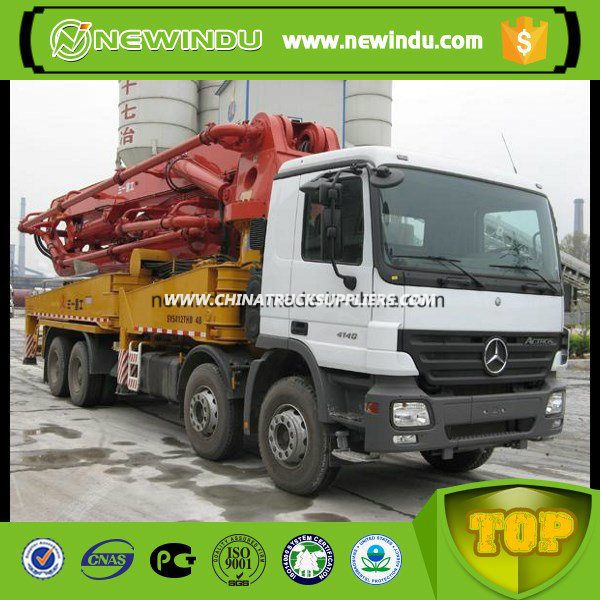

Concrete Truck Mounted Pump Sany 42m/45m/48m

Product Description

Theoretical Productivity	m3/h	129
Pumping Capacity Index	MPa.* m3/h	585
Max. Concrete Pressure	Mpa	8.54
Hopper Capacity	L	725
Feeding Height	mm	1400
Model of Distributing Valve		S pipe valve
Max. operation Radius	m	47.82
Max. operation Height	m	51.86
Max. operation Depth	m	39.81
open height of aggregate carrying pipe	mm	9435
Distance between Front Landing Legs	mm	10298
Distance between Rear Landing Legs	mm	10650
Distance between Front and Rear Landing Legs	mm	10316
Rotary Angle of Each Boom Section		90/180/ 180/180/270°
Remote-control Distance	m	200
