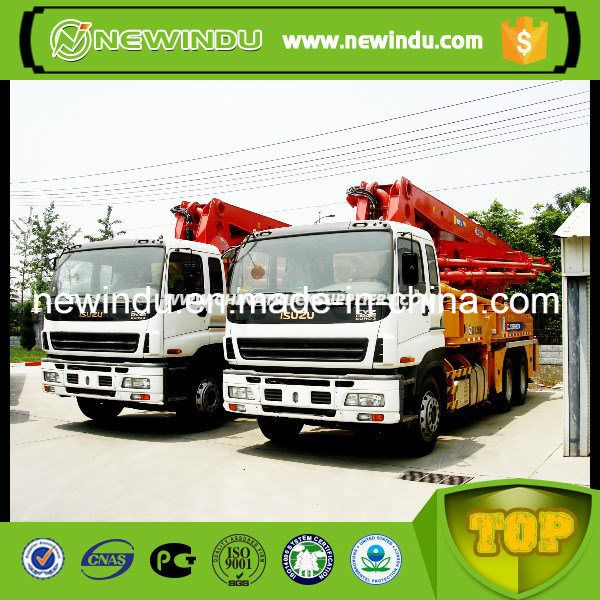

Building Concrete Pump Truck Machinery China Syg5530thb 62

Building Concrete Pump Truck Machinery china SYG5530THB 62

Feature

One Button Stabilization Technology

The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose.

Boom Anti Vibration Technology

The boom anti vibration technology reduces vibration during pumping by 50% allowing less movement and greater control of the end hose.

Energy Saving Technology

With cycle times of up to 29 per minute (at 12MPa), pump efficiency is increased up to 25% while fuel consumption is decreased by up to 10%.

Anti Overswing Technology

By adopting our new swing brake technology, the boom's overswing amplitude is reduced by 60%

Parameters
Length
15730 mm
Width
2500 mm
Height
4000 mm
Empty weight
53000 kg
Boom & Outrigger
Vertical reach
62 m
Horizontal reach
57.6 m
Reach depth
42 m
Unfolding reach
16.2 m
1st section-Length
12140 mm
1st section-Articulation
90°
2nd section-Length
10090 mm
2nd section-Articulation
180°
3rd section-Length
9570 mm
3rd section-Articulation
180°
4th section-Length
12280 mm
4th section-Articulation
230°
5th section-Length
7945 mm
5th section-Articulation
200°
6th section-Length
5100 mm
6th section-Articulation
100°
Rotation
±270º
Outrigger spread L-R-Front
11420 mm
Outrigger spread L-R-Rear
13880 mm
Pumping System
Output (Low/High-pressure)
180/125 m³/h
Pressure (Low/High-pressure)
8.3/12 Mpa
Max. strokes per minute (Low/High-pressure)
29/19 times/min
Delivery cylinder diameter
260 mm
Stroke length
2100 mm
Hydraulic system
Open
Hydraulic system pressure
32 Mpa
Hydraulic tank capacity
650 L
Water tank capacity
700 L
Pipe size
125 mm
End hose length
3 m
End hose diameter
125 mm
Chassis
Chassis model
BENZ Actros 5041 10×4
Engine model
OM501LA.IV/3
Engine power
300/1800 kW/rpm
Emissions
Tier / Tier III
Fuel tank capacity
400 L
Displacement
11.946 L
Max.speed
80 km/h
Brake distance
≤10/30 m/km/h
