New 48m Small Portable Concrete Pump Hb48-B-C-D

new 48m small portable concrete pump HB48-B-C-D

Contact way:
Sales Manager
Alisa Wang

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109Fax: +86-21-62120109
Mobile :+86-18616224775

Product description:
new 48m small portable concrete pump HB48-B-C-D

Travel
Category	Item	Unit	Parameter	Parameter	Parameter
Chassis	Model		FM	Actros4141	FY1EWV
	Manufacturer		VOLVO	Germany BENZ	Hino
	Max. speed	km/h	94.8	85	85
	Max. gradeability		35%	38%	39.90%
	Min. turning diameter	m	24.605	25.9	24.4
	Brake distance	m	≤10	≤10	≤10
	Wheelbase	mm	1995+4405+1370	1700+4600+1350	1850+4605+1310
	Tread (front/rear)	mm	2028/1837	2034/1804	2050/1855
	Approach angle/departure angle	.	17/10	22/10	18.2/10
	Min. clearance	mm	270	300	240
	Tyre specification		315/80R22.5	315/80R22.5	315/80R22.5
Engine	Model		D13	OM501LA./17	E13CTL
	Output power	kw/(r/min)	294/1400~1800	300/1800	331/1800
	Max. torque	N.m/(r/min)	2200/1050~1400	2000/1080	1912/1100
	Displacement	l	12.8	11.946	12.913
	Emission Standard		Nation III GB	Nation III GB	Nation III GB
Others	Dimension (length x width x height)	mm	12632×2500×3995	12590×2500×3995	12515×2500×3995
	Total vehicle weight	kg	41000	41000	40000
	Fuel tank capacity	l	410	400	400
	Fuel consumption per 100km	l/100km	40	40	40
Pumping operation
Pumping system	Theoretical output(high pressure/low pressure)	m3/h	90/138	90/150
	Concrete pumping pressure(high pressure/low pressure)	Mpa	13/8.7	13/8
	Theoretical pumping times(high pressure/low pressure)	/min	18/27	13/21
	Max. diameter of pumping concrete aggregate	mm	40
	Feeding height	mm	1540
Placing boom	Pumping slump range	cm	12-23
	Reach height	m	48.1
	Reach depth	m	34
	Slewing radius	m	42.75
	Slewing angle	.	370
	1st boom stretch angle	.	90
	2nd boom stretch angle	.	180
	3rd boom stretch angle	.	180
	4th boom stretch angle	.	250
	5th boom stretch angle	.	250
	Outrigger span Overall outrigger span	mm	10500
	Front outrigger transverse span	mm	10450
	Rear outrigger transverse span	mm	10300
Others	Dosing type		S valve	S-valve
	Lubricating method		Automatic lubrication	Automatic
	Controlling method		Manual/remote control	Manual/Remote control
	Water tank capacity	l	600
	Max. pressure of water pump	Mpa	2

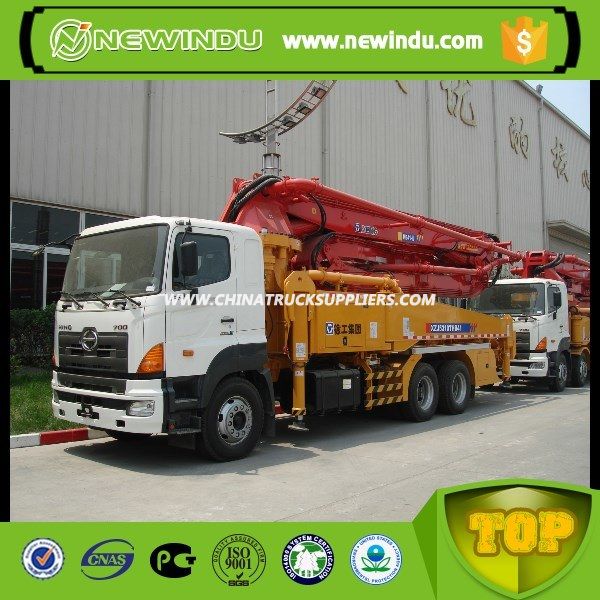

Product image:
