New XCMG 41m Concrete Pump Hb41

new XCMG 41m concrete pump HB41

Contact way:
Sales Manager
Alisa Wang

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109Fax: +86-21-62120109
Mobile :+86-18616224775

Product description:
new XCMG 41m concrete pump HB41

Travel
Category	Item		Unit		Parameter
Chassis	Model			FS1ERV	Actros3341	FM
	Manufacturer			Hino	Germany BENZ	VOLVO
	Max. speed		km/h	85	85	90
	Max. gradeability			46.30%	61.90%	30%
	Min. turning diameter		m	17.8	19.8	18.4
	Brake distance		m	≤7	≤7	≤7
	Wheelbase		mm	4640+1310	4500+1350	4900+1370
	Tread (front/rear)		mm	2050/1855	2034/1804	2019/1834
	Approach angle/departure angle		.	22/10	16/10	18/10
	Min. clearance		mm	245	300	270
	Tyre specification			295/80R22.5	315/80r22.5	12.00R20
Engine	Model			E13C TL	OM501LA.|||/17	D13
	Output power		kw/(r/min)	302/1800	300/1800	294/1800
	Max. torque		N.m/(r/min)	1618/1100	2000/1080	2000/1050
	Displacement		│	12.9	11.946	12.8
	Emission Standard			Nation III GBIII	Nation III GBIII	Nation III GBIII
Other	Dimension (length x width x height)		mm	11100x2500x3990	11060x2500x3990	11350x2500x3990
	Total vehicle weight		kg	30500	30600	31400
	Fuel tank capacity		│	400	400	400
	Fuel consumption per 100km		│/100km	33.3	40	40
Pumping operation
Category		ItemITEM		UnitUNIT	ParameterPARAMETER
Pumping system	Theoretical output(high pressure/low pressure)			m³/h	70/140
	Concrete pumping pressure(high pressure/low pressure)			Mpa	11.8/6.38
	Theoretical pumping times(high pressure/low pressure)			/min	15/27
	Max. diameter of pumping concrete aggregate			mm	40
	Feeding height			mm	1530
	Pumping slump range			cm	1223
Placing boom	Reach height			m	40.5
	Reach depth			m	27.5
	Slewing radius			m	36
	Slewing angle			.	±270
	1st boom stretch angle			.	90
	2nd boom stretch angle			.	180
	3rd boom stretch angle			.	180
	4th boom stretch angle			.	240
	5th boom stretch angle			.	250
	Outrigger span	Outrigger longitudinal span		mm	7800±50
		Front outrigger transverse span		mm	8350±50
		Rear outrigger transverse span		mm	7200±50
Other	Dosing type				S valve
	Lubricating method				Automatic lubrication
	Controlling method				Manual/remote control
	Water tank capacity			|	600
	Max. pressure of water pump

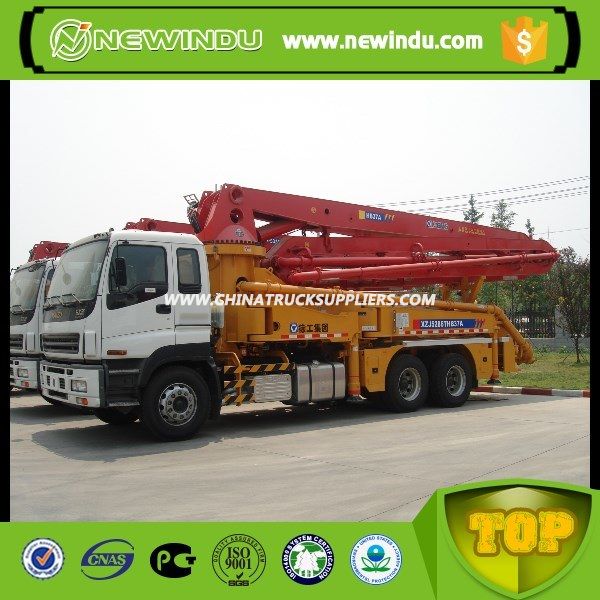

Product image:
