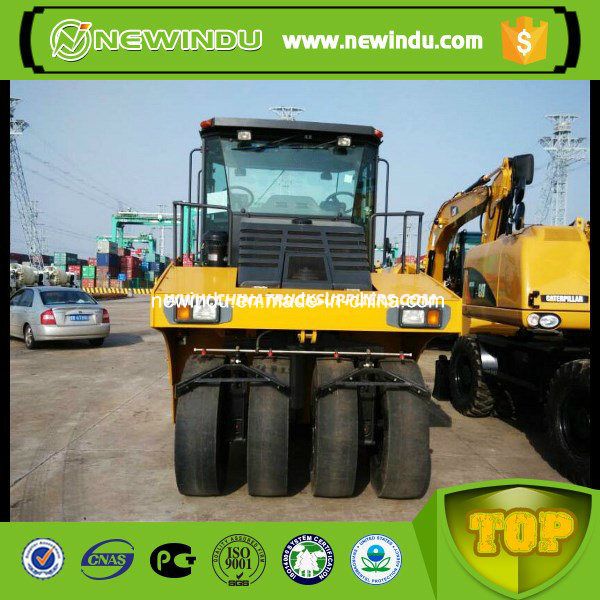

Popular Sale 20ton Hydraulic Pneumatic Type Roller XP203 for Sale
- Price can be negotiated
- 1 Unit
- 81 Unit
- 23 days
Product Description
Popular Sale 20ton Hydraulic Pneumatic Type Roller XP203 for Sale
Driving comfort
Spacious and bright cab features wide view and comfort. Both-side operation can absolutely avoid rolling the curb and the compacting blind corners.
Simple operation
There are two steering wheels, two seats, and two independent control systems for operations. The speed change adopts electric control handle and two-speed gear shift design, which can respectively meet the requirements of compaction and site transfer, together with flexible electronic control operation and comfortable handfeel, greatly reduces the labor intensity of the drivers.
Excellent performance
Adopting the pneumatic tyre to compact the layer will not damage the compacted materials. The compact performance can be improved by adding or reducing the counterweight and changing the inflation pressure of the tyres. Because of the kneading effect produced by the tyre's elasticity, the material displacement will be produced in all directions, forming even dense surface without cracks, which can prolong the service life of the road.
Adopt the front wheels swing mechanism. When the machine works on rough road, the mechanism ensures the even ground pressure, which can make the materials be compacted evenly.
The optional international leading infrared tyre heating system realizes the no water sprinkling work of the compactor, and improves the density and service life of the road.
Driving comfort
Spacious and bright cab features wide view and comfort. Both-side operation can absolutely avoid rolling the curb and the compacting blind corners.
Simple operation
There are two steering wheels, two seats, and two independent control systems for operations. The speed change adopts electric control handle and two-speed gear shift design, which can respectively meet the requirements of compaction and site transfer, together with flexible electronic control operation and comfortable handfeel, greatly reduces the labor intensity of the drivers.
Excellent performance
Adopting the pneumatic tyre to compact the layer will not damage the compacted materials. The compact performance can be improved by adding or reducing the counterweight and changing the inflation pressure of the tyres. Because of the kneading effect produced by the tyre's elasticity, the material displacement will be produced in all directions, forming even dense surface without cracks, which can prolong the service life of the road.
Adopt the front wheels swing mechanism. When the machine works on rough road, the mechanism ensures the even ground pressure, which can make the materials be compacted evenly.
The optional international leading infrared tyre heating system realizes the no water sprinkling work of the compactor, and improves the density and service life of the road.
| Model | Unit | XP203 |
|---|---|---|
| Min. working weight | kg | 11740 |
| Max. working weight | kg | 20000 |
| Ground pressure | kPa | |
| Travel speed | km/h | 200-400 |
| Speed I | 4.2 | |
| Speed II | 8.2 | |
| Speed III | 17.4 | |
| Reverse speed I | 4.17 | |
| Reverse speed II | 8.2 | |
| Theoretical gradeability | % | 20 |
| Min. turning external radius | mm | 7330 |
| Min. ground clearance | mm | 250 |
| Compaction width | mm | 2250 |
| Roller overlap amount | mm | 45 |
| Tyre specification | 11.00-20-16PR | |
| Amount | FrontFront 4 Rear rear 5 | |
| Engine model | YC4A125Z | |
| Type | Water cooling, pressurizing | |
| Rated power | kw @2200 r/min | 92 |
| Engine oil consumption | g.kw/h | ≤230 |
| Hydraulic oil tank capacity | L | 60 |
| Diesel oil tank capacity | L | 150 |
| Overall length | mm | 4770 |
| Overall width | mm | 2250 |
| Overall height | mm | 3285 |
