XCMG 16ton Road Vibrator Roller with Pad Foot Xs163j

XCMG 16ton single drum road roller XS163J model

Comfortable driving
ROPS driving cab is equipped with an air conditioner, radio and suspended chair. It has a bigger space and broad view inside.

Unique structure
Unique cylindrical drum structure features high rigidity and intensity. Short cylindrical bearing with high limited rotation speed provides high load - carrying capacity. The symmetrical arrangement of the right and left vibration chambers avoids the polarization of the vibratory drums.

Easy operation
According to the ergonomics theory, all meters, indicators and buttons are centered on the operation panel. The throttle handle and FWD/REV handle are put on the right side to improve the sense of comfort.
The failure diagnosis screen with alarms can avoid any unnecessary downtime.
The simple and easy lubrication mode ensures an extremely low failure rate of the lubricating system.

Main Configuration

Model	Unit	XS163J
Operating weight	kg	16000
Weight on front drum	kg	7700
Static linear pressure	N/cm	362
Speed range	km/h
Speed I		2.54
Speed II		4.97
Speed III		10.51
Theoretical gradeability	%	30
Min. external turning radius	mm	6500
Steering angle	°	±33
Oscillating angle	°	±11
Vibration frequency	Hz	28
Nominal amplitude (high/low)	mm	1.9/0.95
Excitation force (high/low amplitude)	kN	290/145
Engine model		SC8D156.2G2B1
Type	Water cooled, pressurized	Water cooled, pressurized
Max. power	kW	115@1800r/min
Engine oil consumption	g/kW.h	223
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	240

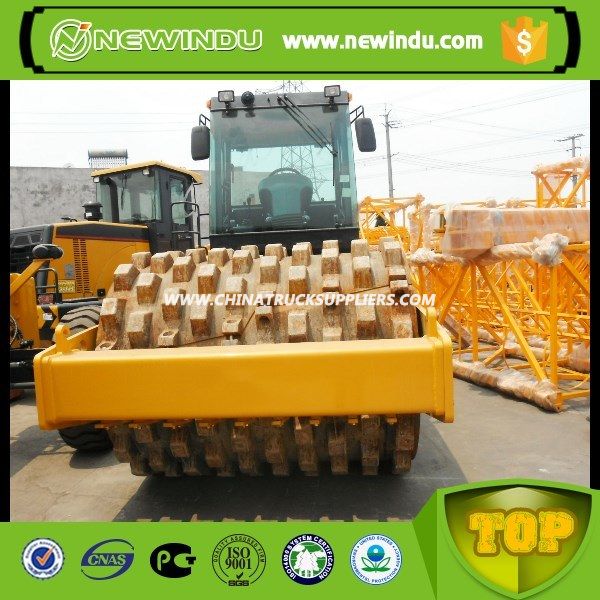

Pad foot for selection on vibator roller:





More photos of 16ton vibrator roller:





We, Newindu company which is a professional construction machinery company with over 10 years exporting experience.Our business range is very large as below:1.Hosting equipment (truck cranes, crawler crane, towe crane, Truck Mounted Crane, etc.)2.Earthmoving equipment ( excavator, wheel loader, bulldozer, etc.)3.Road equipment (road roller, motor grader, asphalt paver, cold milling machine, etc.)
4. Logistic equipment ( forklift, reach stacker, container handler, pallet stacker, etc.)5. Special trucks (Dump Truck, tractor truck, water tank truck, semi-trailer, crago truck, etc.)6.concrete equipment( concrete mixer, concrete pump truck, concrete/asphalt mixing plant, etc.)7.Drilling equipment(rotary drilling rig, horizontial direction drill rig, etc)8.Agricultural machine( tractor, harvester, etc)9.Spare parts all available
We will be happy to receive your inquiry for any machine you need. By using professional foreign trade experience, we will recommend exatcly you need with good quality and competitive price.
