Product description

16 ton vibratory road roller road construction machine

Model	Unit	XP163
Min. working weight	kg	11100
Max. working weight	kg	16000
Ground pressure	kPa	200-400
Travel speed	km/h
	Speed I	4.2
	Speed II	8.2
	Speed III	17.4
	Reverse speed I	4.17
	Reverse speed II	8.2
Theoretical gradeability	%	20
Min. external turning radius	mm	7230
Min. ground clearance	mm	250
Compaction width	mm	2055
Roller overlap amount	mm	30
Tyre specification		9.00-20-12PR
Amount		Front 4 Rear 5
Engine model		YC4A125Z
Type		Water cooling, pressurizing
Rated power	kw @2200 r/min	92
Engine oil consumption	g.kw/h	≤230
Hydraulic oil tank capacity	L	60
Diesel oil tank capacity	L	130
Overall length	mm	4715
Overall width	mm	2055
Overall height	mm	3258

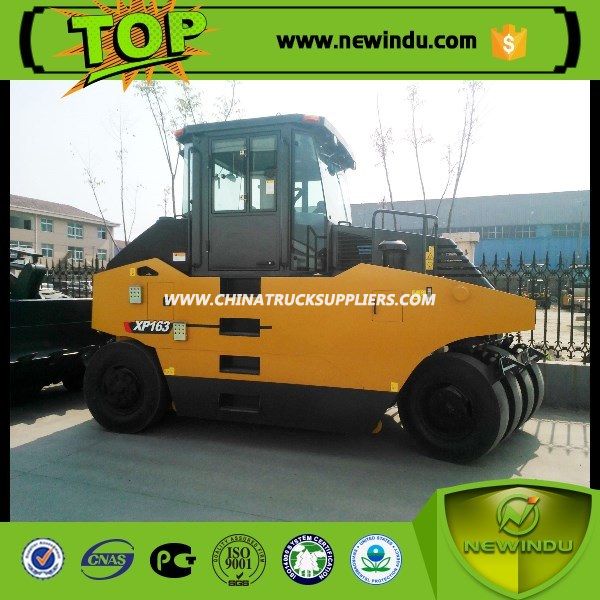

Product image
