High Quality Roller Clg614h Vibratory Road Roller Spare Parts

high quality roller CLG614H vibratory road roller spare parts

Contact way

Sales Manager
Alisa Wang

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109Fax: +86-21-62120109
Mobile+86-18616224775

Product description

Mass		Operating Mass(kg)	14000
		Mass On Vibrating Drum(kg)	7400
		Mass On Drive Axle(kg)	6600
		Front Drum Static Linear Load (N/cm)	340
Compaction		Vibration Frequency(Hz)	30/33
		Nominal Amplitude(mm)	1.95/0.9
		Centrifugal Force(kN)	300/180
		Drum Diameter(mm)	1500
		Drum Width(mm)	2130
		Drum Thickness(mm)	30
Drive		1st Maximum Speed,fwd(km/h)	4.5
		2nd Maximum Speed,fwd(km/h)	6.1
		3rd Maximum Speed,fwd(km/h)	6.7
		4th Maximum Speed,fwd(km/h)	12
		Theoretical Gradeability(%)	50
		Min. Ground Clearance(mm)	490
		Wheelbase(mm)	3000
		Steering Angle(°)	±35
		Swing angle(°)	±10
		Min. Outside Turning Radius(mm)	6500
		Tyre Type	23.1-26-12PR
		Tyre Pressure(kPa)	200-220
		Overall Length(mm)	6000
		Overall Width(mm)	2300
		Overall Height(mm)	3050

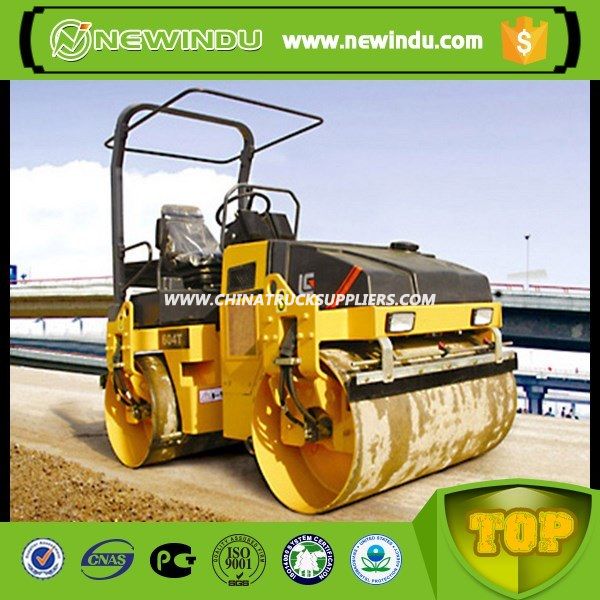

Product image
