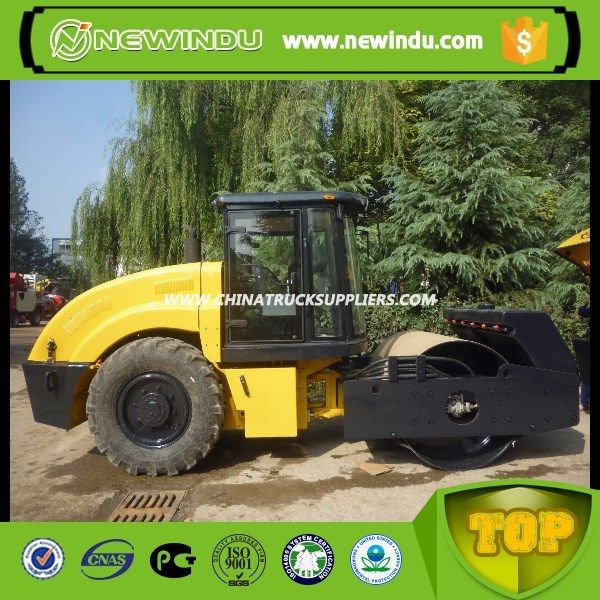

Lutong Single Drum Vibratory Roller Lt618b

LT618B Single drum daul-amplitude vibratory roller

-Operating mass: 18000kg
-Germany technology
-SC8D180 Engine

The machine is super heavy-duty vibratory roller, possesses agreat working mass and strong centrifugal force. It is the best compaction equipment of high quality and high effect in the largescale mechanized construction. This machine is suitable for noncohesive materials, such as graves, macadam, macadamaggregate mixtures and sandy soil etc. The machine is an idal equipment for expressway. Mining road, embankment, sea port and industrial sites.

Main Features
1, Mechanical travel drive, double amplitude, hydraulic vibration and steering with optimal function /price ratio and reliable performance.
2, Motor: Original D-series extra-pressure diesel engine extra-pressure diesel engine, made by Shanghai Diesel Engine with bigpower man reserving co efficiency, which comply with the operatingconditions above 4000 meters altitudes.
3, Two sets of brake devices, ahand brake and foot pedal brake, assure the machine's safety and dependability.
4, Spacious and comfortable cab mounted on top quality rubber damping elements, with hydraulic upturn function to facilitate the repairand maintenance.
5, World advanced technology is adopted for the hydraulic vibration technology, high in reliability, simple and convenient in maintenance, and low in cost.
6, Vibration system adopts imported hydraulic components.
7, Padfoot stel wheels can be replaced at any time broadening the operating space.

Model		LT618B
Operating mass	Kg	18000
Static linear load	N/cm	490
Vibration amplitude	mm	1.9/0.95
Vibration frequency	Hz	30
Centrifugal force	Kn	390/280
Travel speed	km/h	10.5
Grade ability	%	30
Turning radius	mm	7500
Overall dimension	mm	6410*2350*3090
Vibration round width	mm	2100
Wheel base	mm	3380
Diesel model		SC8D180
Diesel power	Kw	132

-------------------
