Lutong Double Drum Vibratory Roller

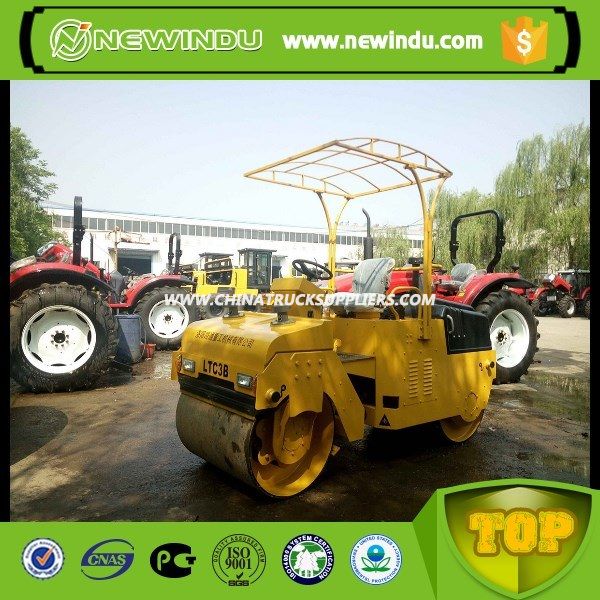

LUTONG LTC3E double drum vibratory rolleroller

LTC series wheeled vibratory roller is applicable for maintenance of municipal roads and highways,as well as the compaction of the narrow road surfaces such as groove foundation,building construction,pipeline backfill and stadium.

Main Features
Mechanical movement,hydraulic vibration,hydraulic rotation,with reliable performance and optimum function/price ratio.
Both front and rear wheels have scraping and water spray unit.
Adopt Domestic famous brand changchai seriesdiesel ending,very convenient for use and maintenance.
Compact integral structure,samll volume,capable of used for compaction on narrow site and side channel operation.
Main Technical Parameters

MODEL		LTC3E	LTC3F	LTC4F
Operating mass	Kg	3000	4000	4000
Static linear load	N/cm	128/172	120/153	155/211
Vibration frequency	Hz	50	50	50
Centrifugal force	Kn	30	32	32
Travel speed	Km/h	5.6	7.8	7.8
Grade ability	%	20	20	20
Turning speed	mm	4600	4500	4500
Overall dimension	mm	3020*1310*2600	2830*1290*2650	2830*1290*2650
Front drum width	mm	1250	1090	1090
Wheelbase	mm	2100	2000	2000
Diesel power	Kw	21	26.5	26.5
Diesel model		ZN385Q	ZN390B	ZN390B
Water tank capacity	L	76	200	200
